2-Gang Solid Brass Rotary Dimmer + Outlet Combo (Duplex/USB/GFCI)
Antique Brass (Hand-Brushed) / Single Pole (one way) / Standard Duplex + USB-C / USB-C
$190.00
Skip to product information
2-Gang Solid Brass Rotary Dimmer + Outlet Combo (Duplex/USB/GFCI)
Solid brass
Built to last 50+ years
UL & CE Certified
Tested for US & EU safety standards
Antimicrobial
Brass kills 99.9% of bacteria
$190.00
Questions or custom requests? We're here to help.
Phone
+1 (505) 405-0498
Also available on live chat
Description
This 2-gang solid brass combination plate is designed to pair one rotary dimmer with one outlet in a single, unified faceplate, delivering a clean and cohesive look. It is compatible with a standard 2-gang box and installs like a conventional wall plate, while offering a more substantial, high-end finish once in place.
You can select the dimmer configuration (single-pole or 3-way) and choose the outlet type (duplex, USB, or GFCI) to suit your setup. Matching brass mounting screws are included for a consistent finish.
Its reversible design allows the plate to be installed in either orientation, thanks to its symmetrical layout.
Finishes & Natural Variations
Our wall plates are crafted from solid brass and finished entirely by hand. This process gives each piece a deeper, more refined look than plated alternatives, while naturally allowing for subtle variations from one item to another.

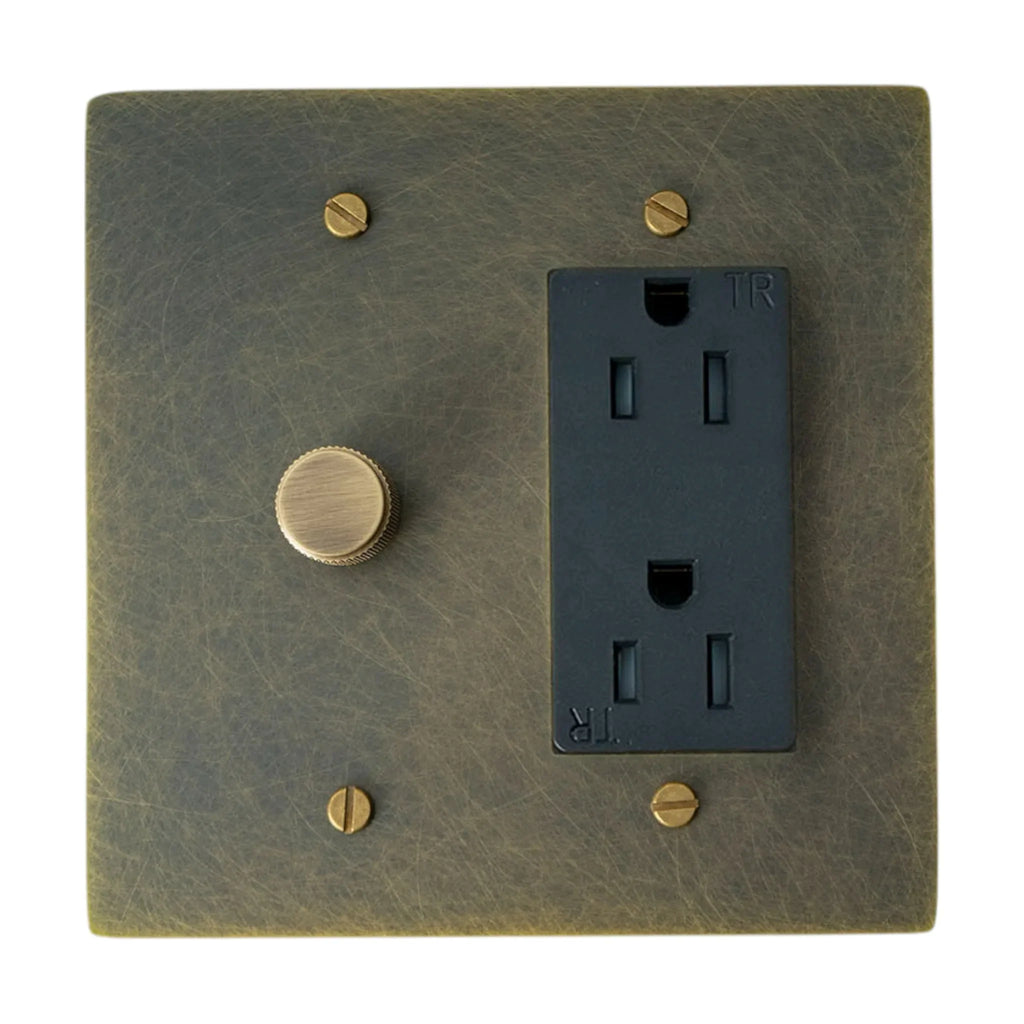

Aged Bronze (Hand-Brushed) — a rich, deep tone with a soft, greenish patina. The hand-brushed process ensures that every piece has its own unique character.

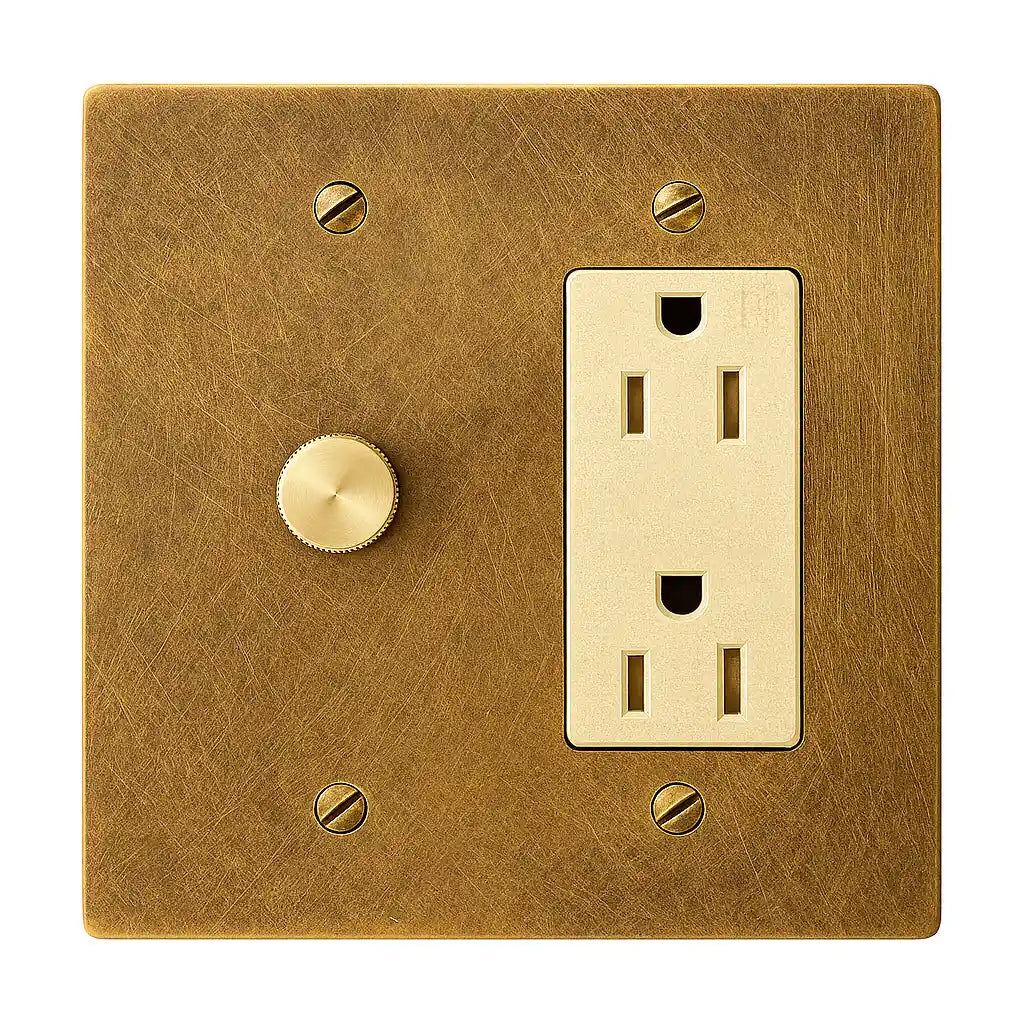

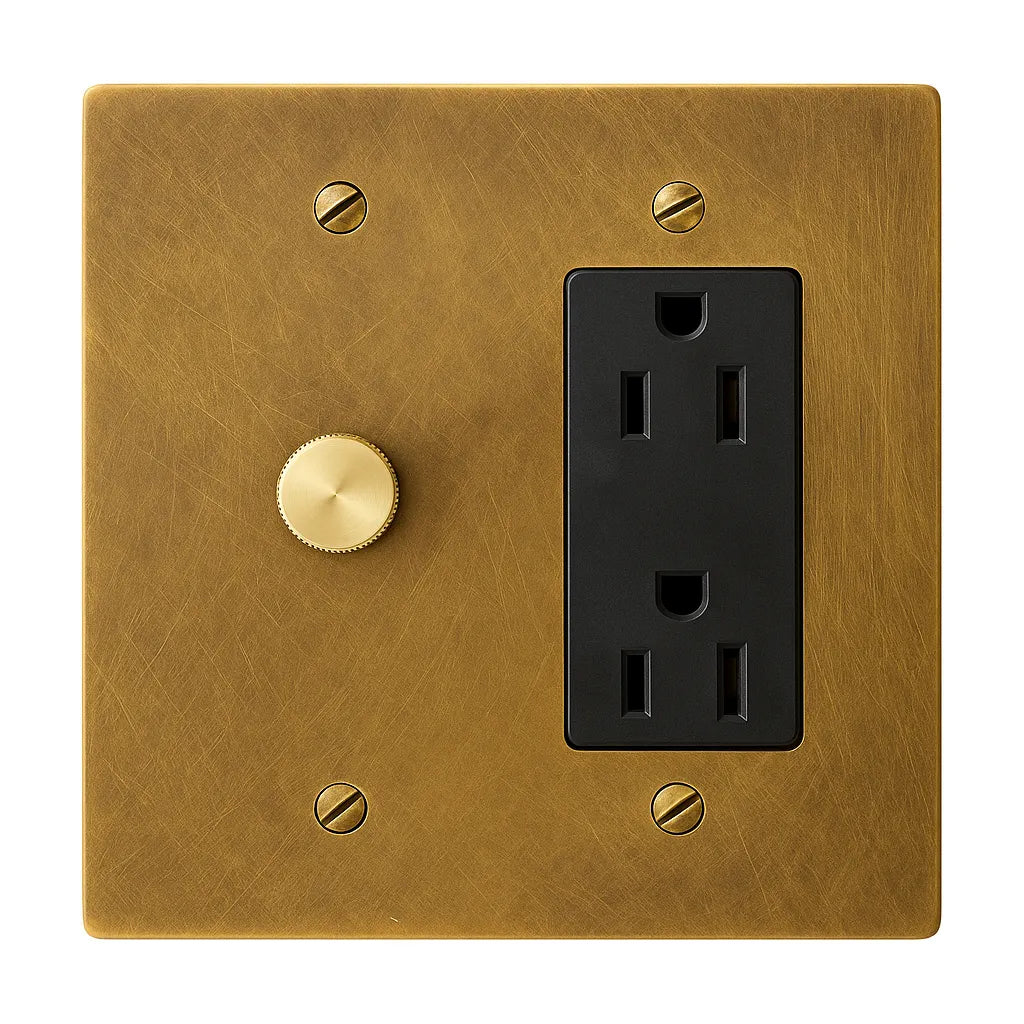

Antique Brass (Hand-Brushed) — an artisanal brushed finish with intentional variation. These differences are part of the design language, not imperfections.

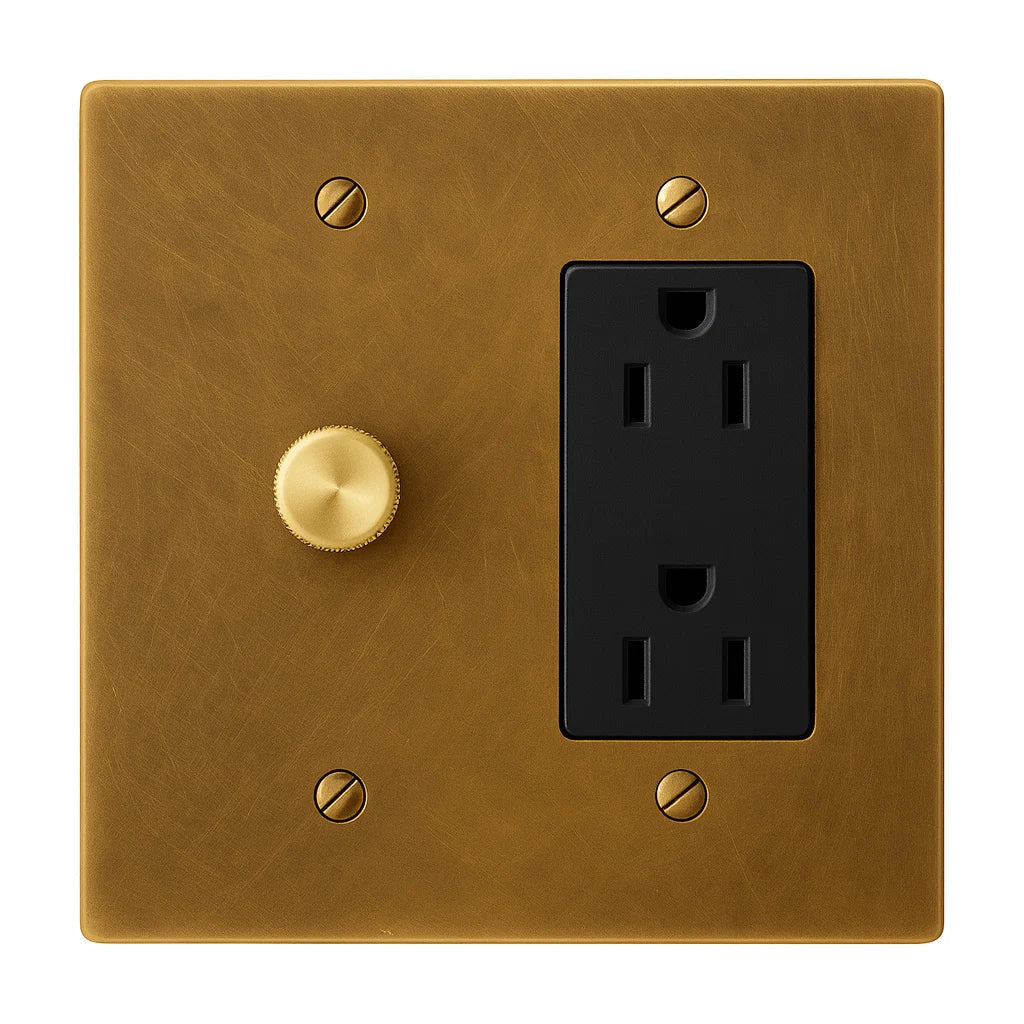

Unlacquered Antique Brass (Hand-Brushed) — a living finish with no protective coating. Delivered with an aged appearance, it will continue to evolve over time as it reacts to air, touch, and its environment.

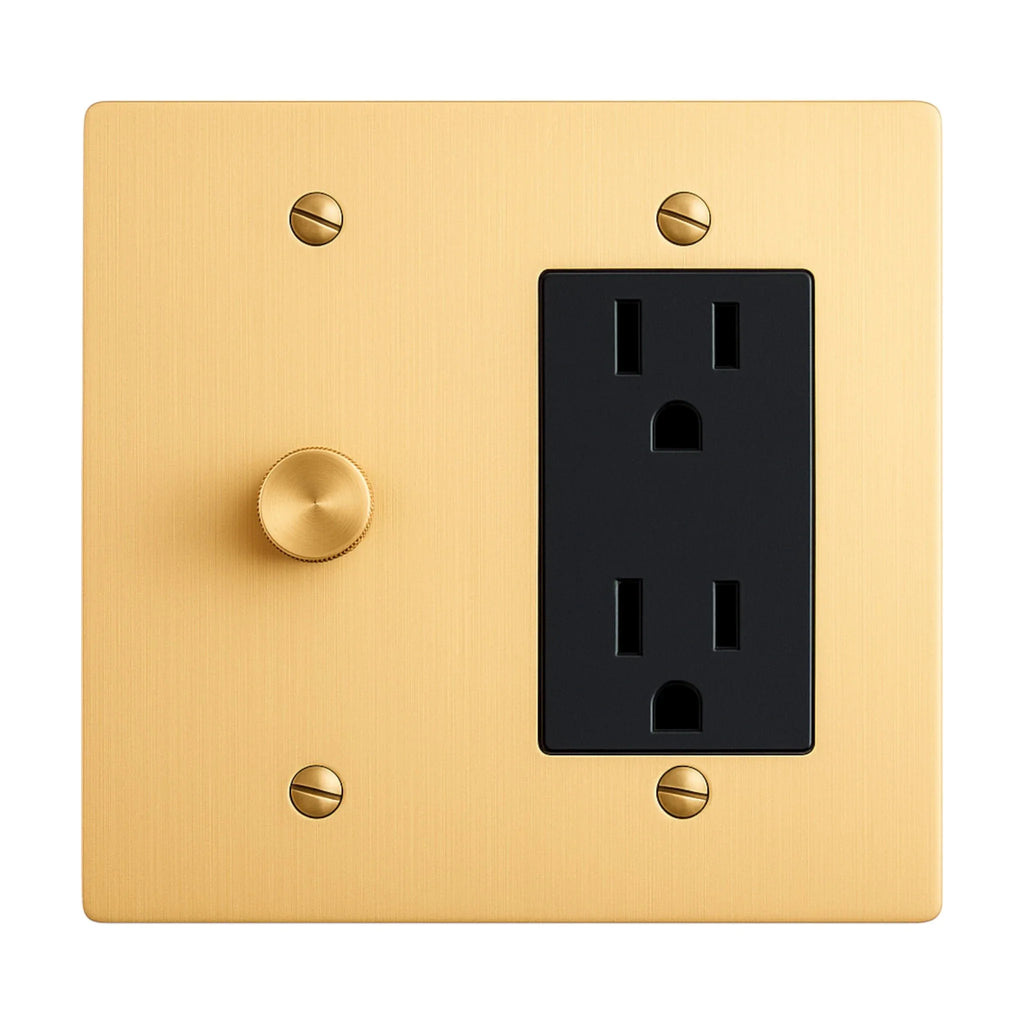

Satin Brass — a smooth brushed finish sealed with a protective lacquer. It maintains its original tone and slows down natural aging.

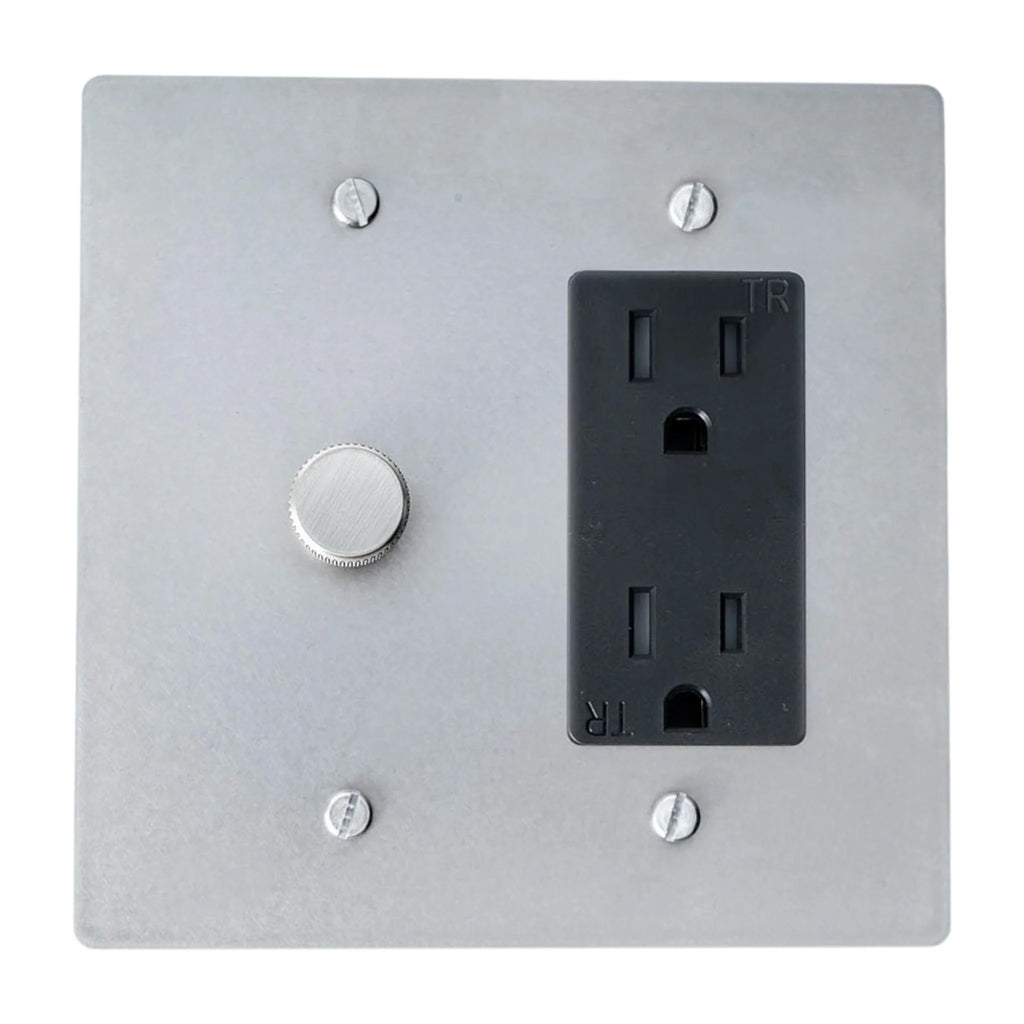

Stainless Steel — a clean, cool metallic finish with a refined brushed texture.

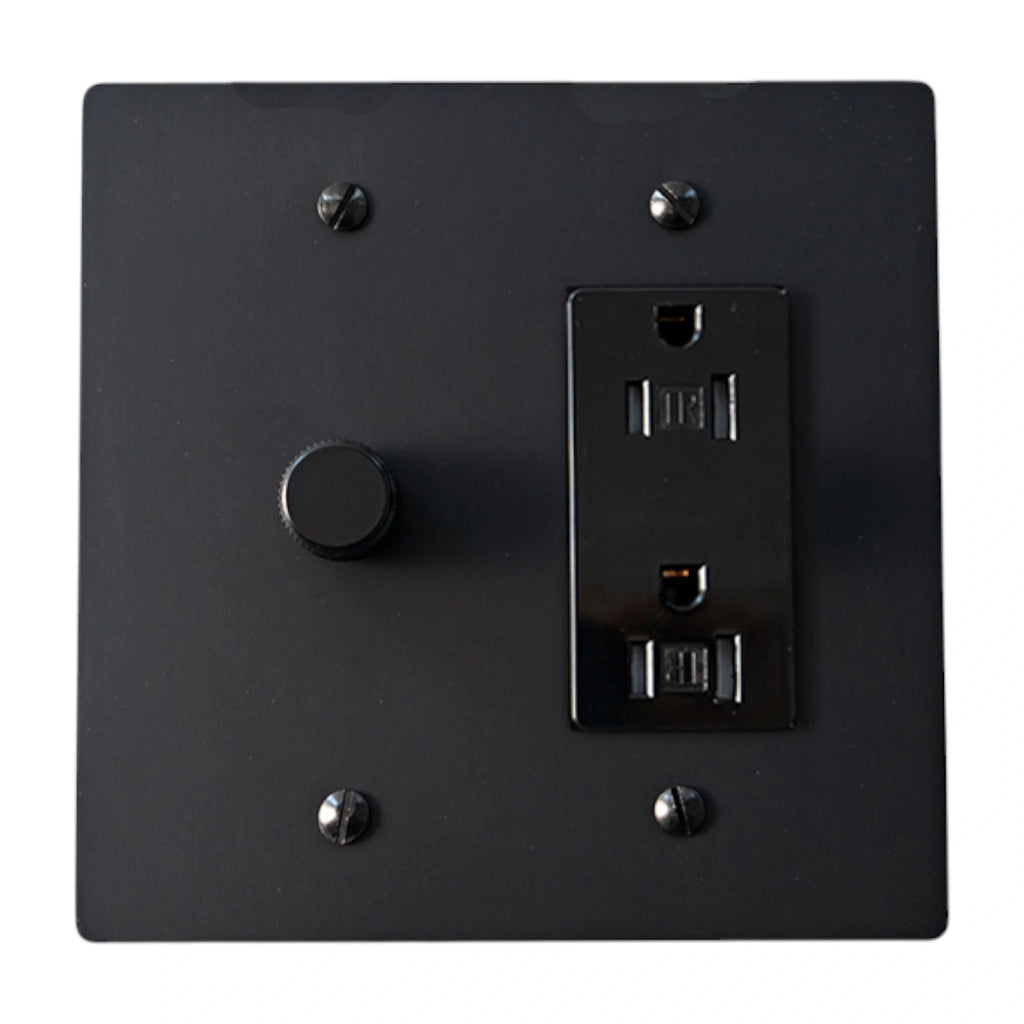

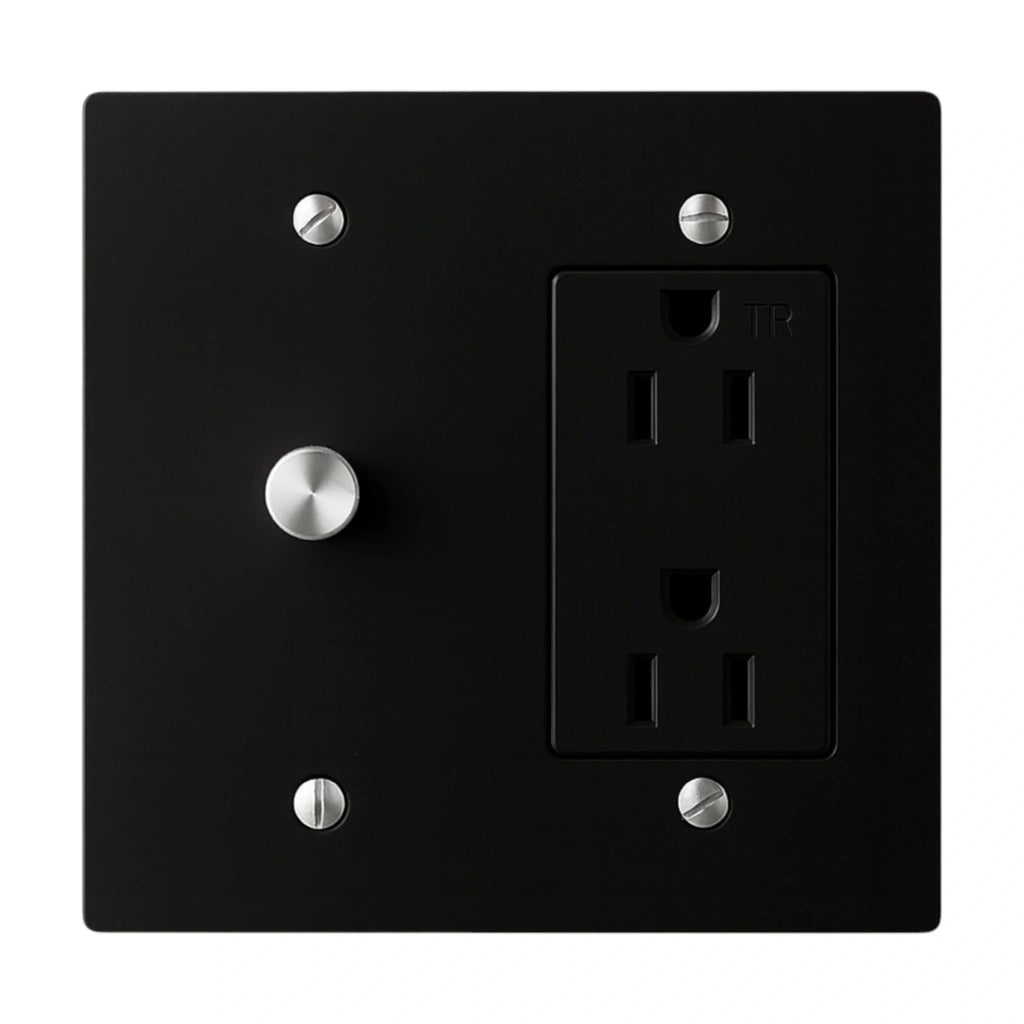

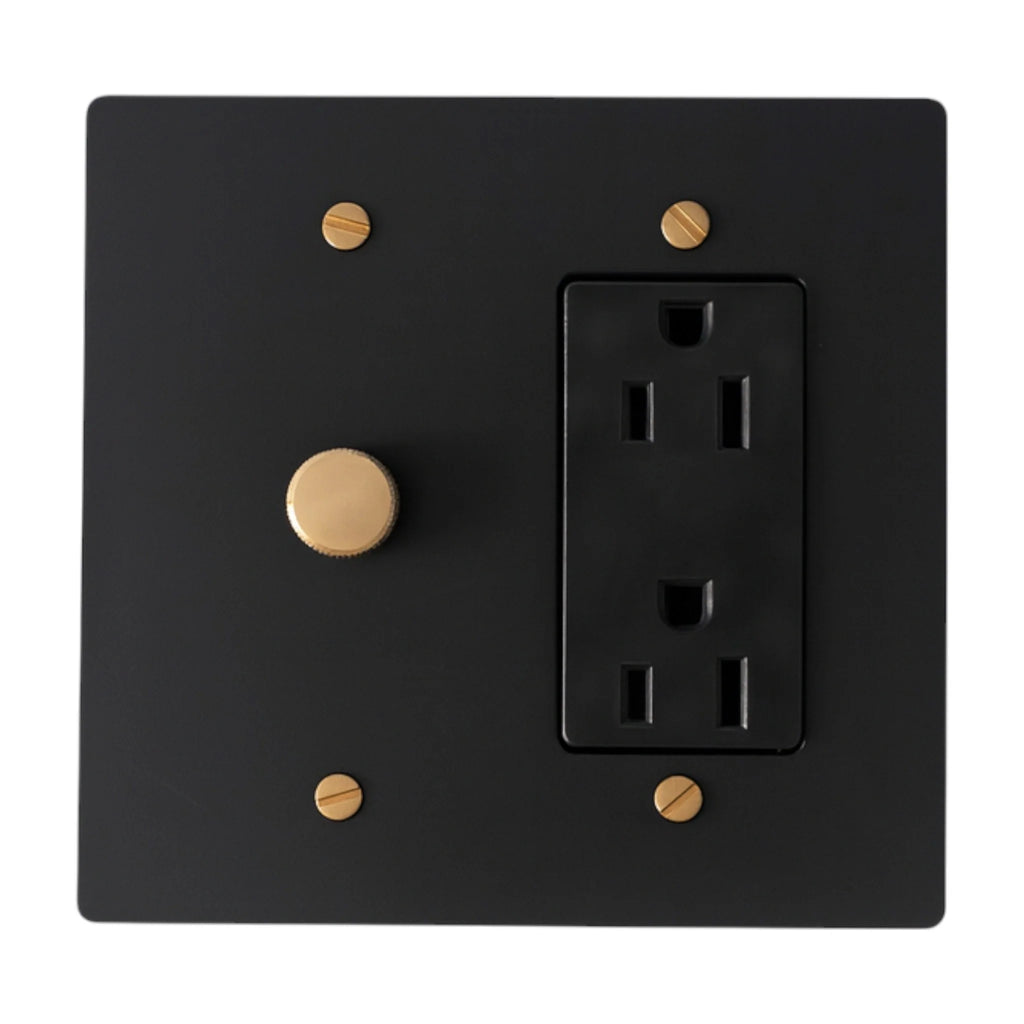

Matte Black — a solid brass base coated in a deep matte black for a bold, architectural presence.

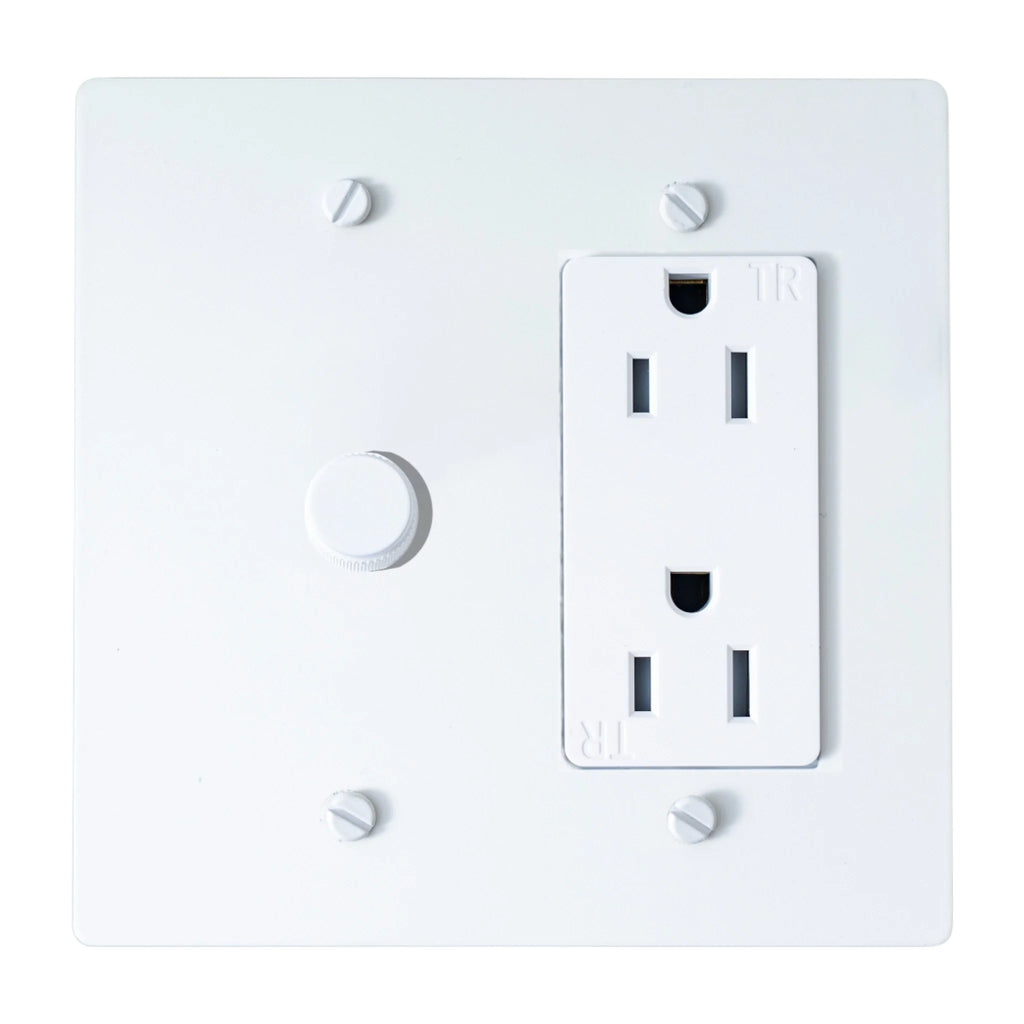

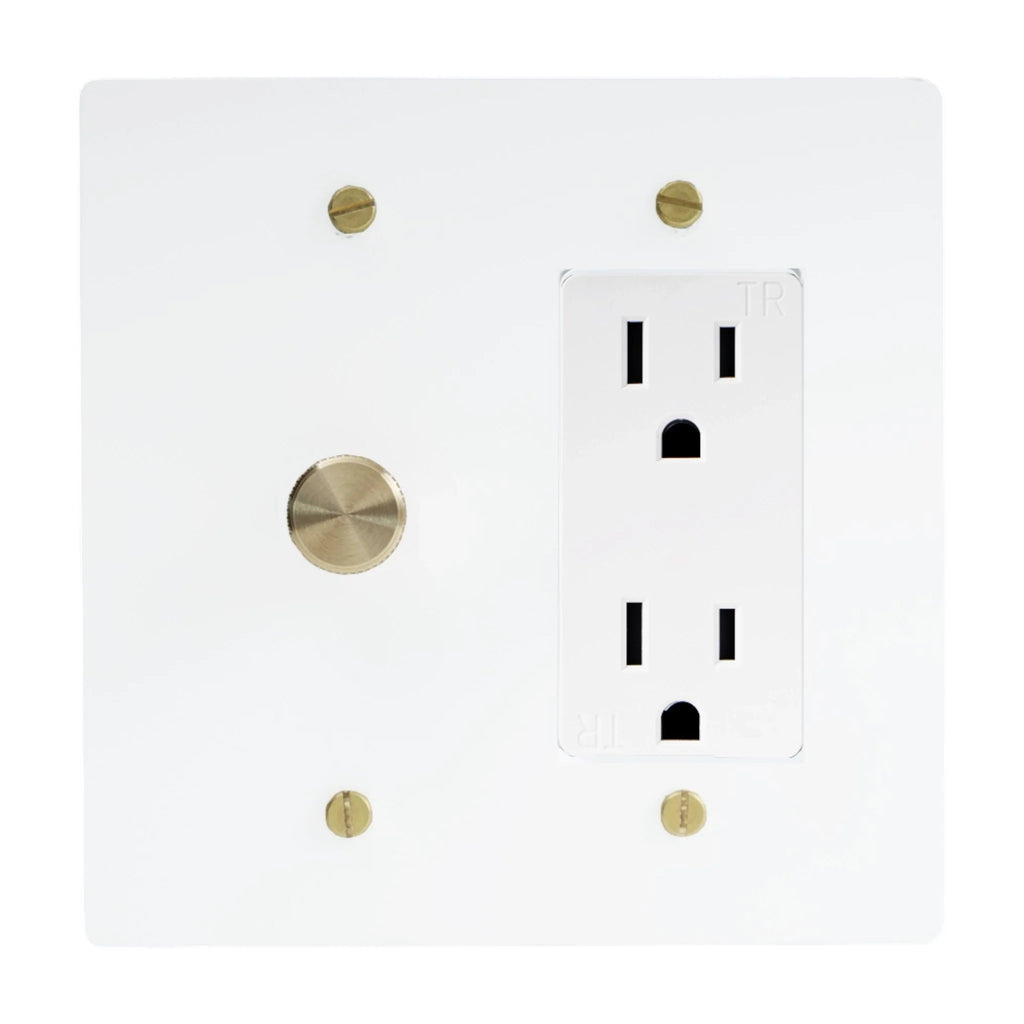

White — a clean, minimalist coating over solid brass for a crisp, understated look.
Batch variation & hand-finishing notes:
Because each plate is finished by hand, slight differences in tone and patina between batches are expected. Factors such as brushing pressure, polishing, paint mixing, and even humidity can influence the final appearance.
Most finishes may vary by up to approximately 10% between batches.
For Unlacquered Antique Brass, a distinct oxidizing process is used. As a result, variations can be more pronounced, sometimes reaching up to 30% lighter or darker tones.
To ensure consistency, we make every effort to ship items from the same production batch whenever possible.
These natural variations are an inherent characteristic of genuine brass and are not considered defects.
Installation Guide
Product Includes
Brass plate, diamond cut dimmer knob, plus all required mounting hardware.
Installation Steps
Step 1: Turn Off the Power
Before you begin, switch off the power to the circuit at your home’s breaker panel or fuse box for safety.
Step 2: Remove the Old Cover Plate
Use a screwdriver to loosen the screws holding the existing cover plate. Remove it carefully and place it aside.
Step 3: Take Out the Old Switch
Unscrew the fasteners securing the old switch to the electrical box, then gently pull the switch outward.
Step 4: Disconnect the Wires
Carefully detach the wires from the old switch.
• If the wires are looped around screws, loosen the screws to release them.
• If the wires are pushed into holes at the back of the switch, you may need to cut and strip them using a wire stripper.
Step 5: Connect the Wires to the New Switch
Attach the wires to the new dimmer switch.
• If the switch uses screws, wrap the wires around them and tighten securely.
• If the switch has push in holes, insert the stripped wire ends into the openings.
Step 6: Secure the New Switch
Carefully place the wires back into the electrical box and fasten the new switch using the included screws.
Step 7: Attach the New Cover Plate
Position the new cover plate over the switch and secure it in place with the screws.
Step 8: Turn the Power Back On
Once everything is installed, restore power at the breaker panel or fuse box.
Step 9: Test Your New Switch
Turn the dimmer knob to confirm everything is working correctly. If installed properly, your lights should brighten and dim smoothly.
If anything seems unclear or does not feel right during installation, contact a licensed electrician. Safety should always come first.
Product Specifications
- Solid brass wall plate, 0.080″ thick
- Internal dimmer module is UL certified for use in the United States and Canada (UL File No. E522988)
- Dimming technology: TRIAC (leading-edge / phase-cut)
- Electrical rating: 110–130 VAC, 50/60 Hz
- Compatible loads:
Dimmable LED & halogen: 3–150 W
Incandescent: 40–600 W
- Built-in thermal protection (automatic safety cutoff)
- Temperature rating (Ta): up to 130°C (266°F)
- Mechanical life: 10,000+ dimming cycles (minimum)
- Housing: flame-retardant polycarbonate (PC)
- Fits standard North American single-gang electrical wall boxes
Single-Pole vs 3-Way:
- Single-Pole: ON/OFF is a click while rotating, then continue turning to dim.
- 3-Way: push the knob for ON/OFF, then rotate to dim.
LED compatibility note: For best results, use dimmable LED bulbs or drivers labeled TRIAC / leading-edge compatible. Incompatible LEDs may flicker, buzz, or have a limited dimming range.
Not compatible with: trailing-edge (ELV), 0–10V, DALI, smart bulbs, magnetic low-voltage, or other non-TRIAC dimming systems.
What’s included:
- Solid brass wall plate
- Rotary dimmer module (Single-Pole or 3-Way, as selected)
- Matching dimmer knob
- Matching mounting screws
Customize your piece
Make it your own
Our in house specialists can personalize almost any order.
Popular Changes:
• Adjust hanging length
• Change the finish or paint color
• Select a different light color
• Add a dimmable option
• Increase or reduce the size
• Request a full redesign of the fixture based on your idea
What We Do:
• Handle the custom changes listed above
• Prepare CAD drawings for your custom concept
• Place a 3D render of the product into your photo
Connect with an expert by live chat or call us anytime from 9AM EST to 6PM EST.
You can also reach us by email.
Technical Drawings for the Brass Toggle Switch (1 to 5 Gang)
Frequently asked questions
Is the product handcrafted?
Yes. Each Brass Rotary Dimmer Switch is carefully made by hand, with close attention to finish and detail.
Is the dimmer switch UL certified?
Yes. It is UL listed, confirming that it meets recognized safety standards.
How durable is the product?
Its solid brass construction gives it excellent strength and long term reliability, while also providing a smooth and premium tactile experience.
What materials is it made from?
This switch is made from solid brass, giving it a substantial feel, strong durability, and a refined decorative look.
Does it fit standard US electrical boxes?
Yes. It is designed for standard US electrical boxes, which makes it suitable for both replacements and new installations.
How long does installation usually take?
In many cases, installation takes only around 5 minutes, making it a simple upgrade for your space.
Does the switch support Triac dimming?
Yes. It is compatible with Triac dimming and works with supported LED lighting.
What is the weight of the dimmer switch?
Weight varies by configuration, ranging from 1.5 to 4 lbs depending on whether you choose 1 to 4 gangs.
Is the dimmer switch suitable for historic homes?
Yes. Its classic brass design makes it especially well suited to traditional interiors and historic properties.
Is this dimmer switch compatible with LED bulbs?
Yes. The Brass Rotary Dimmer Switch can be used with LED bulbs when paired with Triac dimming.
