Brass Fan Speed Control Switch – 120V UL

Aged Bronze (Hand-Brushed) / Matching

$150.00 USD

1/7

Brass Fan Speed Control Switch – 120V UL

Finish

Accent Style

$150.00 USD

Add a custom engraving (optional) Free

Engraving is optional. Up to 9 characters per position. Leave a box empty for no engraving there.

Style Straight Curved

Engraving text

The engraving sits between the upper screw and the knob, centered on each position.

Solid brass, made by hand
Fits standard US & Canadian boxes
30-day returns
Free wall design help

Questions or custom requests? We're here to help.

Phone +1 (505) 405-0498

Email support@studio-timeless.com

Also available on live chat

Can't find the exact switch or layout you need?

Try our Product Configurator to build your perfect combo: mix toggles, dimmers, outlets, or order plates only in any 1–5 gang setup.

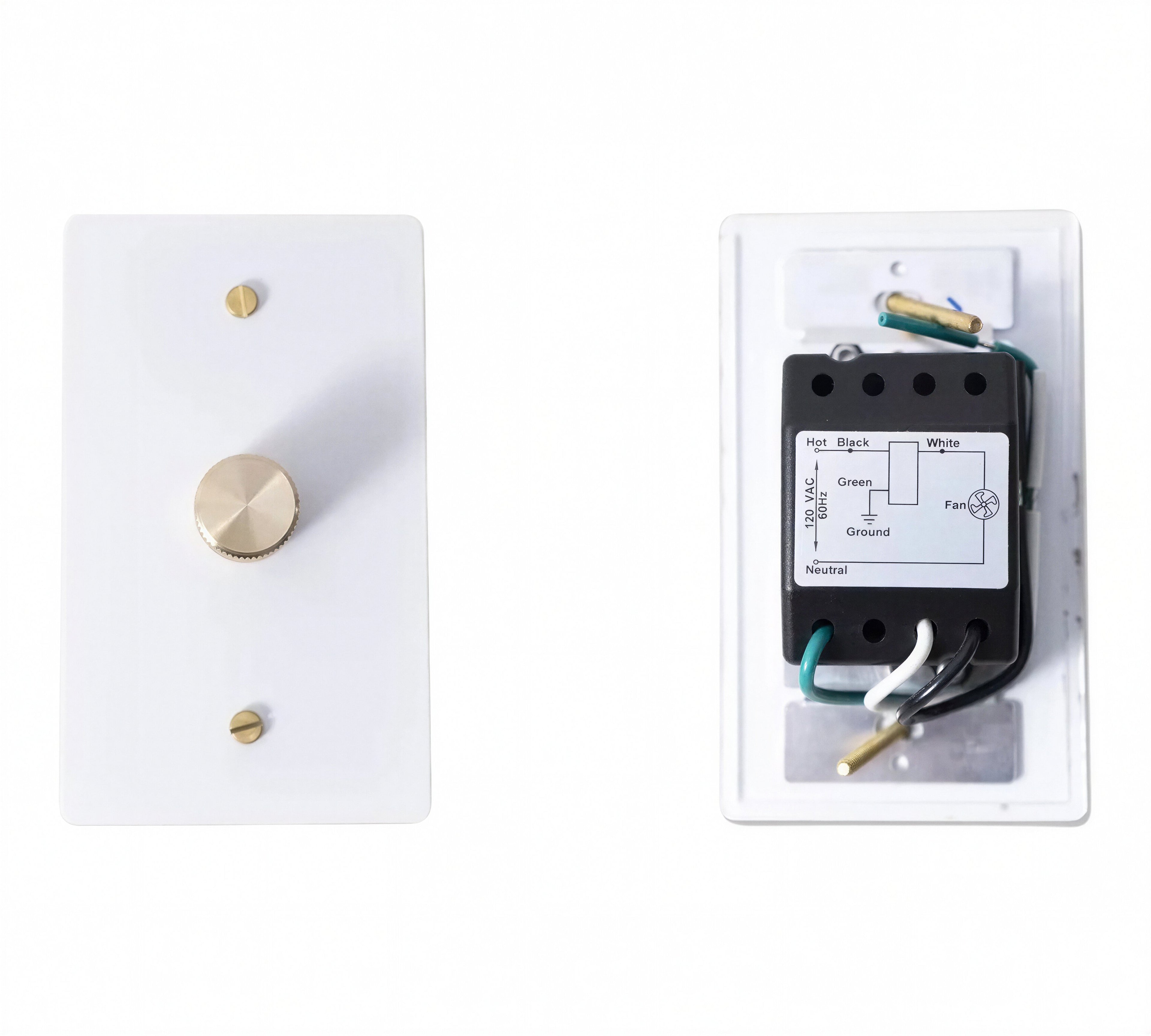

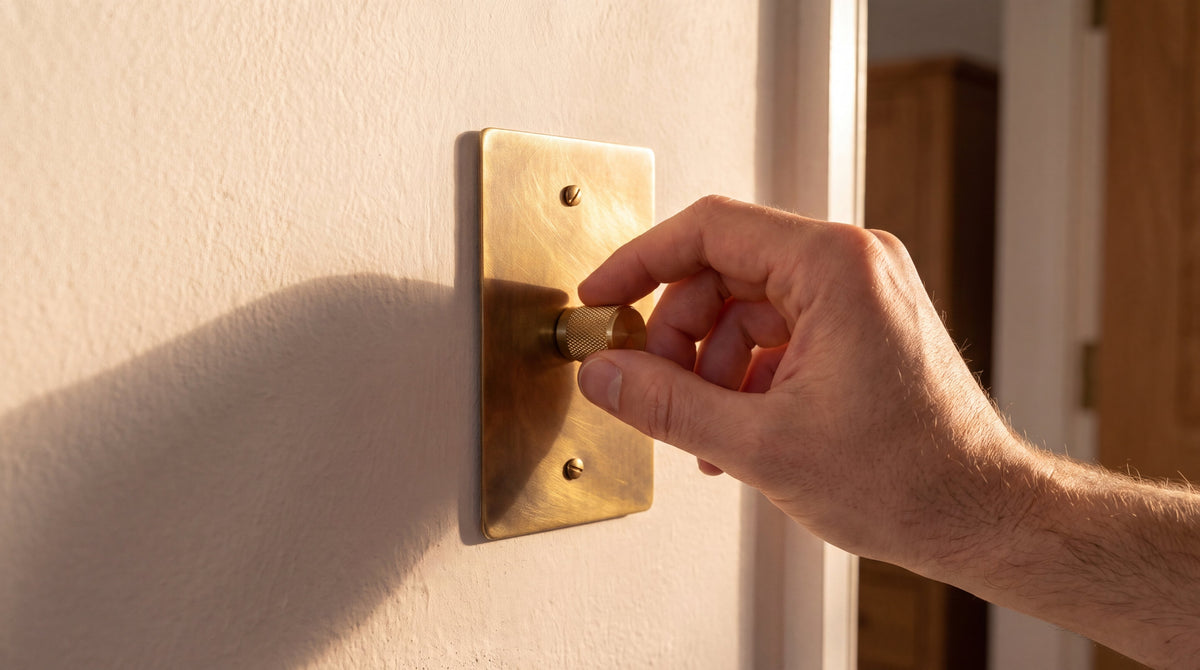

Crafted for straightforward control, this brass fan speed control switch is a manual 120V wall-mounted solution designed for standard ceiling paddle fans in U.S. residential installations.

Rated at 120VAC, 60Hz and UL Listed, it is intended for setups where the fan and light are wired separately within the wall box. It serves as a direct replacement for traditional mechanical fan switches, gear-style controls, or stepless manual controllers.

This control is not compatible with smart fans, remote-controlled fans, or any system that includes built-in electronic modules or receivers.

Depending on the fan, an initial increase in power may be required to start the blades. It is therefore normal for the knob to be turned roughly halfway before the fan begins to spin. Once running, the speed can then be adjusted smoothly and precisely.

About Unlacquered Antique Brass: this is a handmade finish, made to order. Each piece is hand brushed, then oxidized by hand, so no two pieces are exactly alike and the brass keeps developing a natural patina over time. Current lead time for this finish: about 3 weeks of production before shipping.

Product details:

Product type: manual ceiling fan speed control switch
Rated voltage: 120VAC
Frequency: 60Hz
Certification: UL listed
Intended use: designed to control the speed of a single ceiling paddle fan (one fan per control)

Compatibility:

Works with: standard 120V ceiling paddle fans wired for wall control
Not compatible with: smart fans, remote-controlled fans, or fans with built-in electronic modules or receivers
Wiring requirement: requires separate wires in the wall box for the fan and the light

Plate dimensions: 2 13/16″ × 4 11/16″
Plate thickness: 0.080″

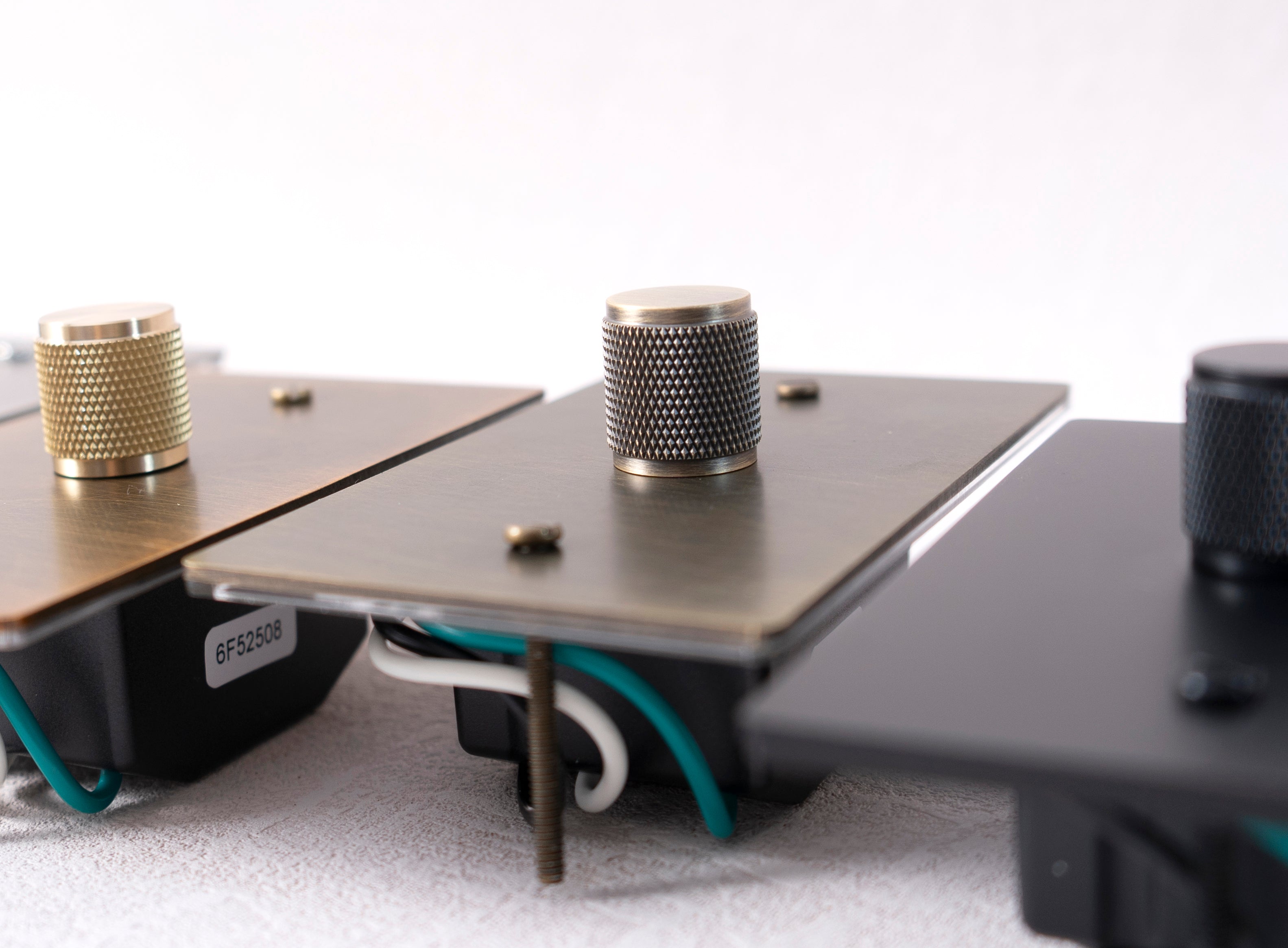

Knob: solid brass with diamond-knurled finish
Recommended wall box depth: 2 1/8″

Included mounting screws:

Length: 1.97″
Head diameter: 0.28″
Head thickness: 0.08″
Slot width: 0.04″

Our wall plates are crafted from solid brass and finished entirely by hand. This process gives each piece a deeper, more refined look than plated alternatives, while naturally allowing for subtle variations from one item to another.

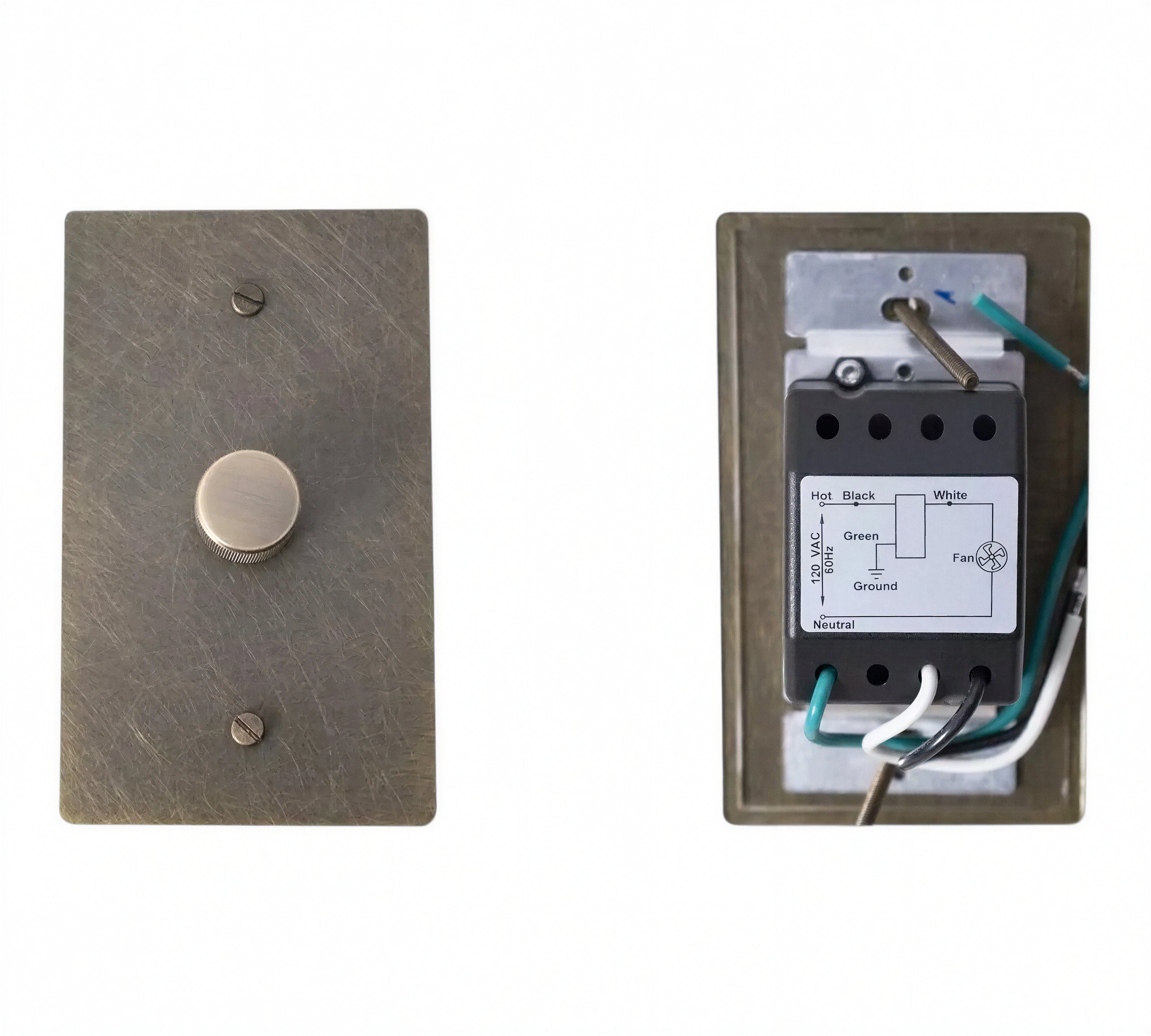

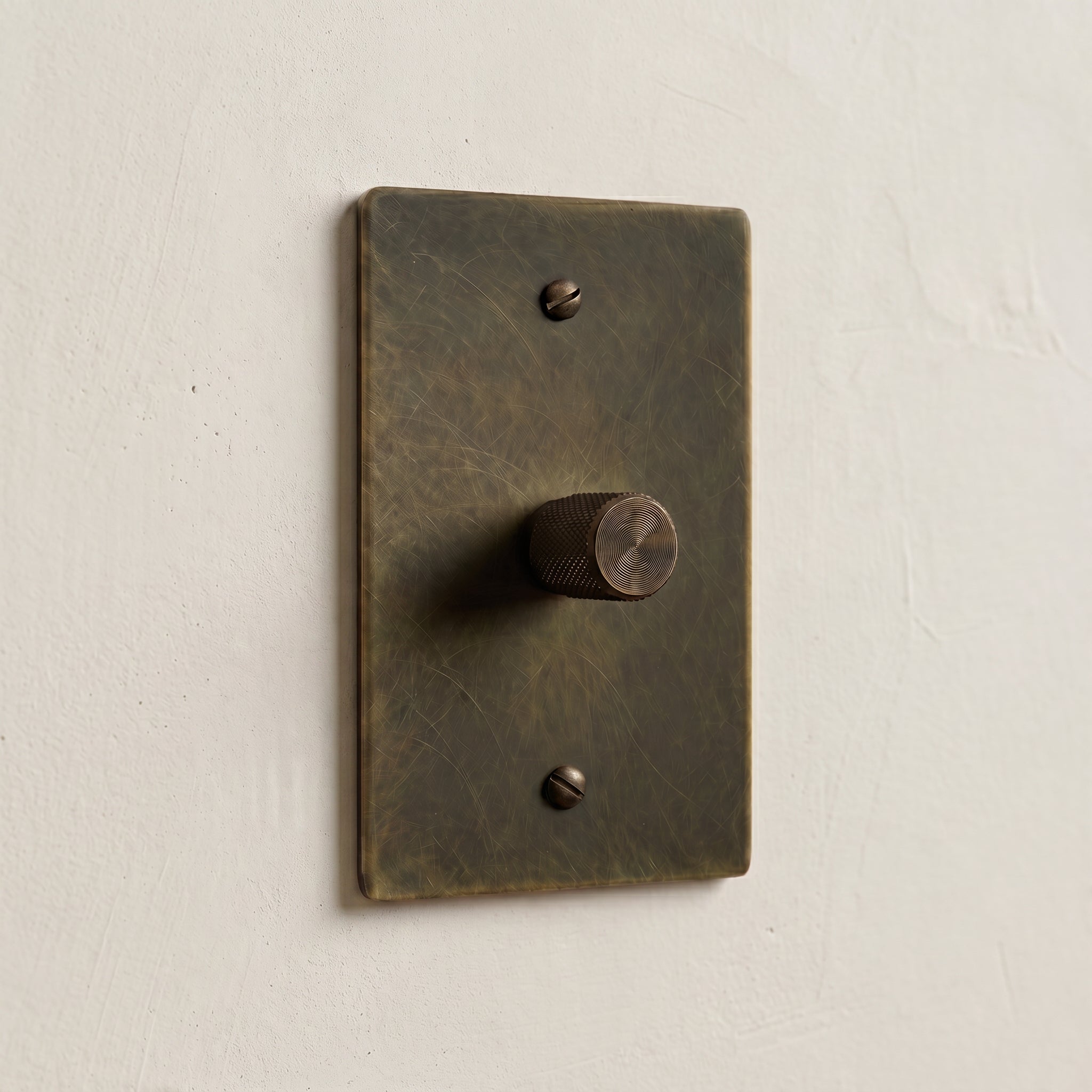

Aged Bronze (Hand-Brushed) — a rich, deep tone with a soft, greenish patina. The hand-brushed process ensures that every piece has its own unique character.

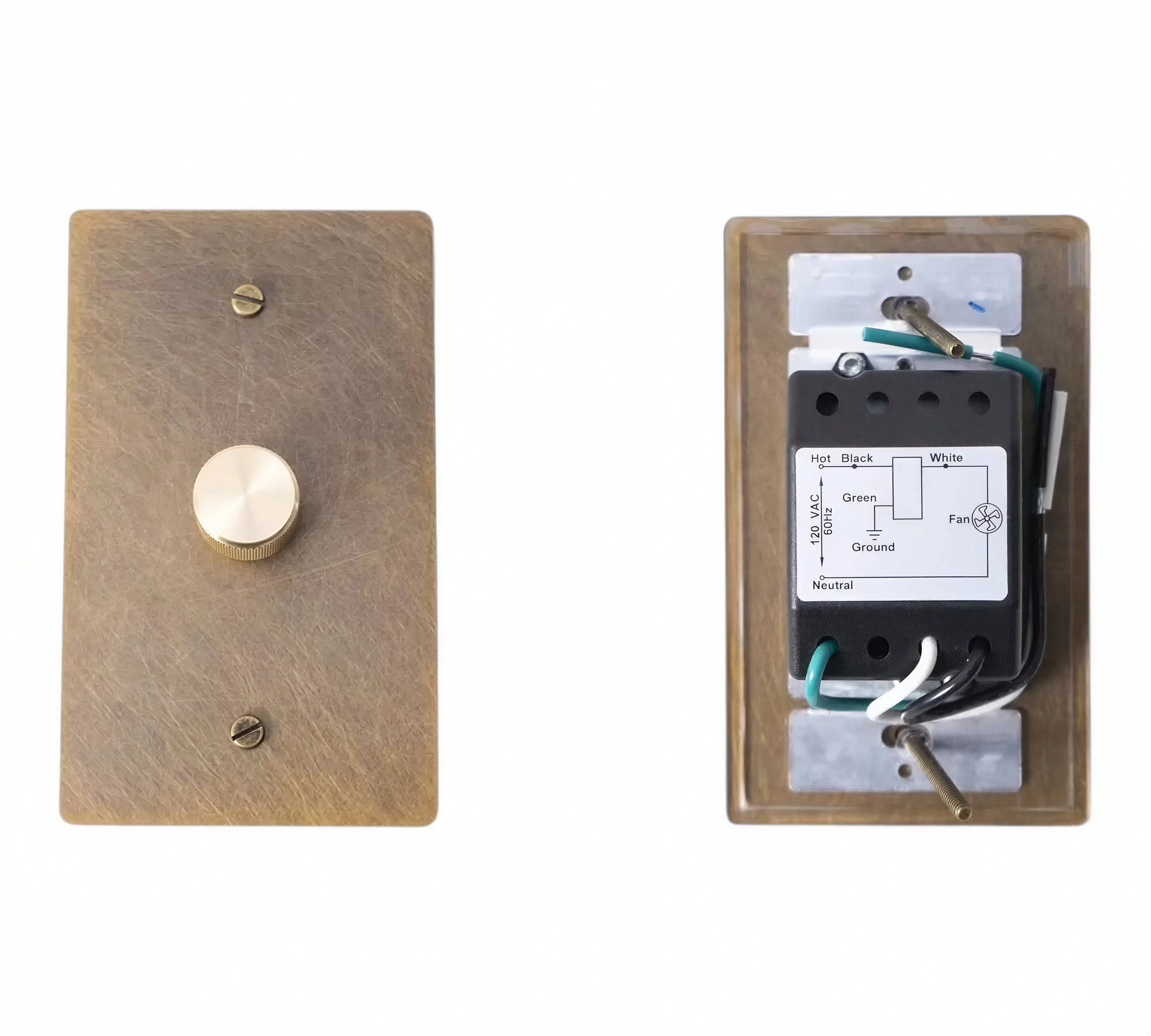

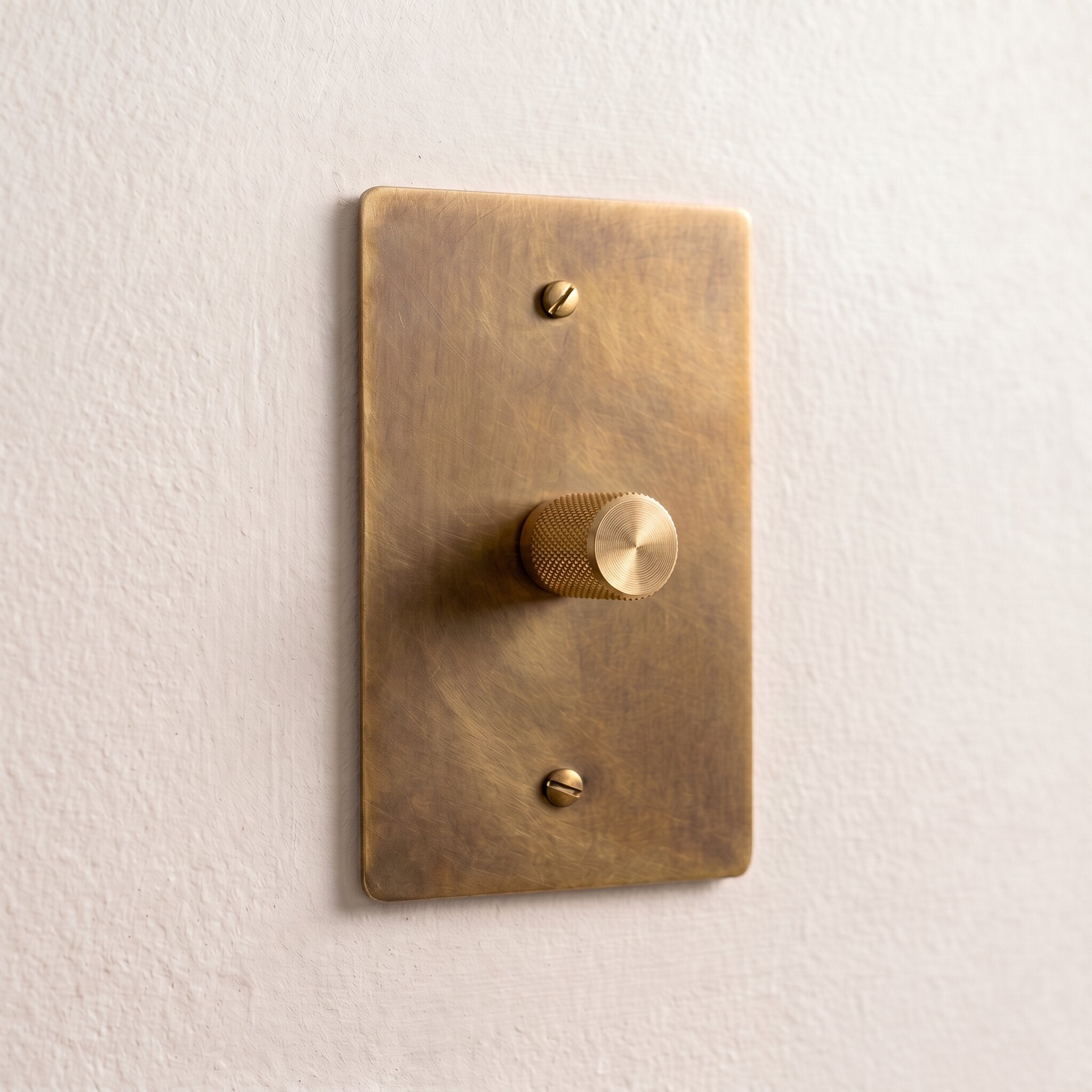

Antique Brass (Hand-Brushed) — an artisanal brushed finish with intentional variation. These differences are part of the design language, not imperfections.

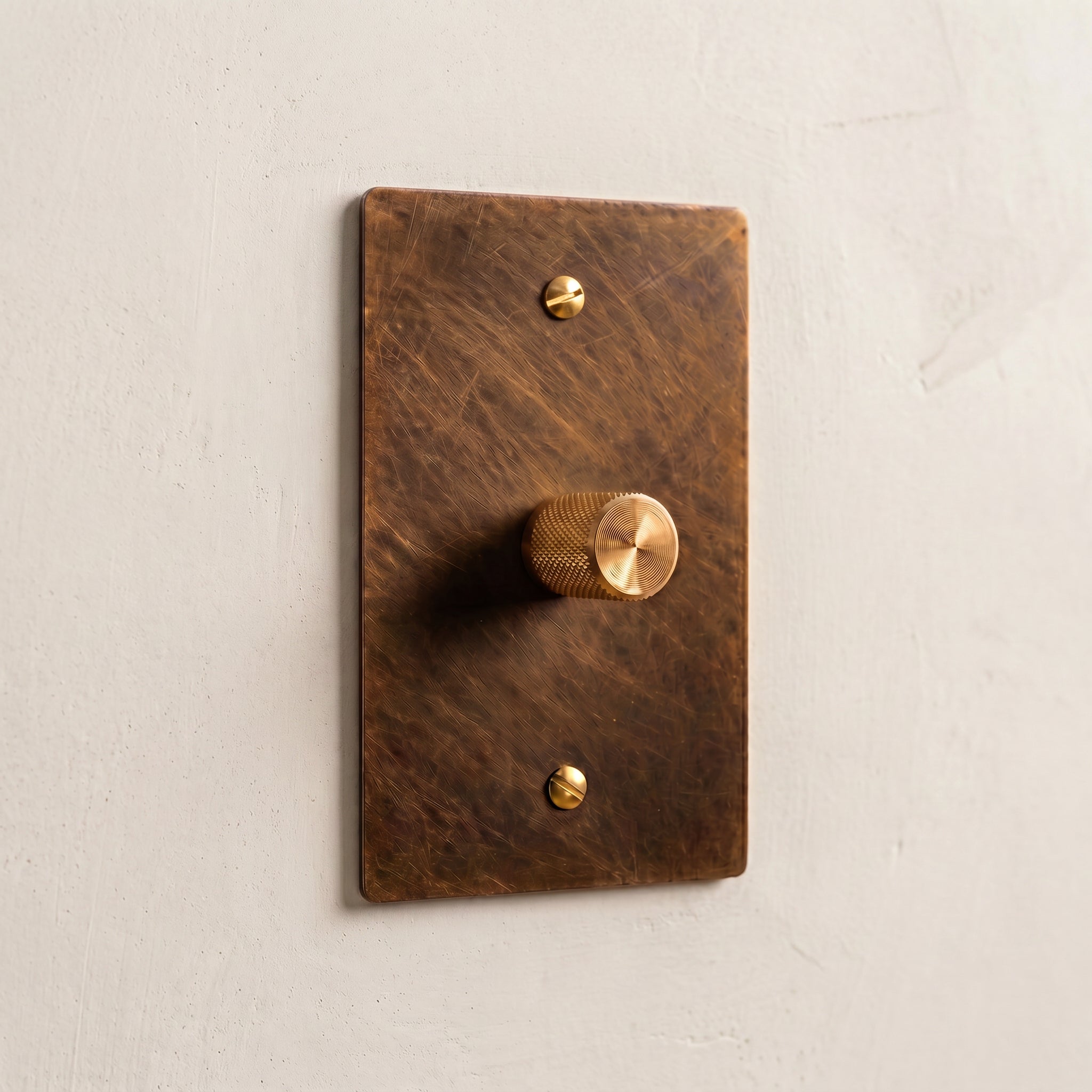

Unlacquered Antique Brass (Hand-Brushed) — a living finish with no protective coating. Delivered with an aged appearance, it will continue to evolve over time as it reacts to air, touch, and its environment.

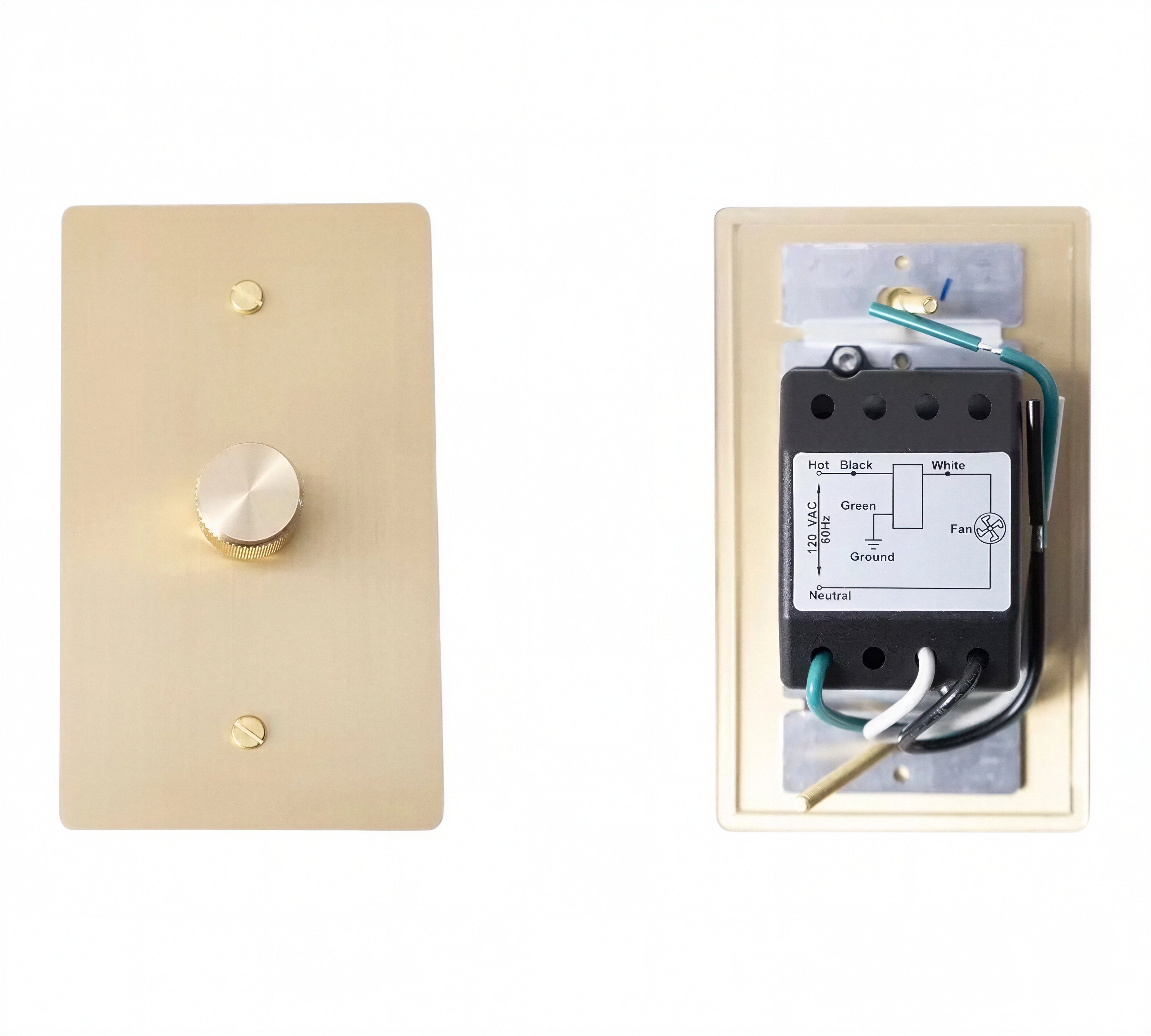

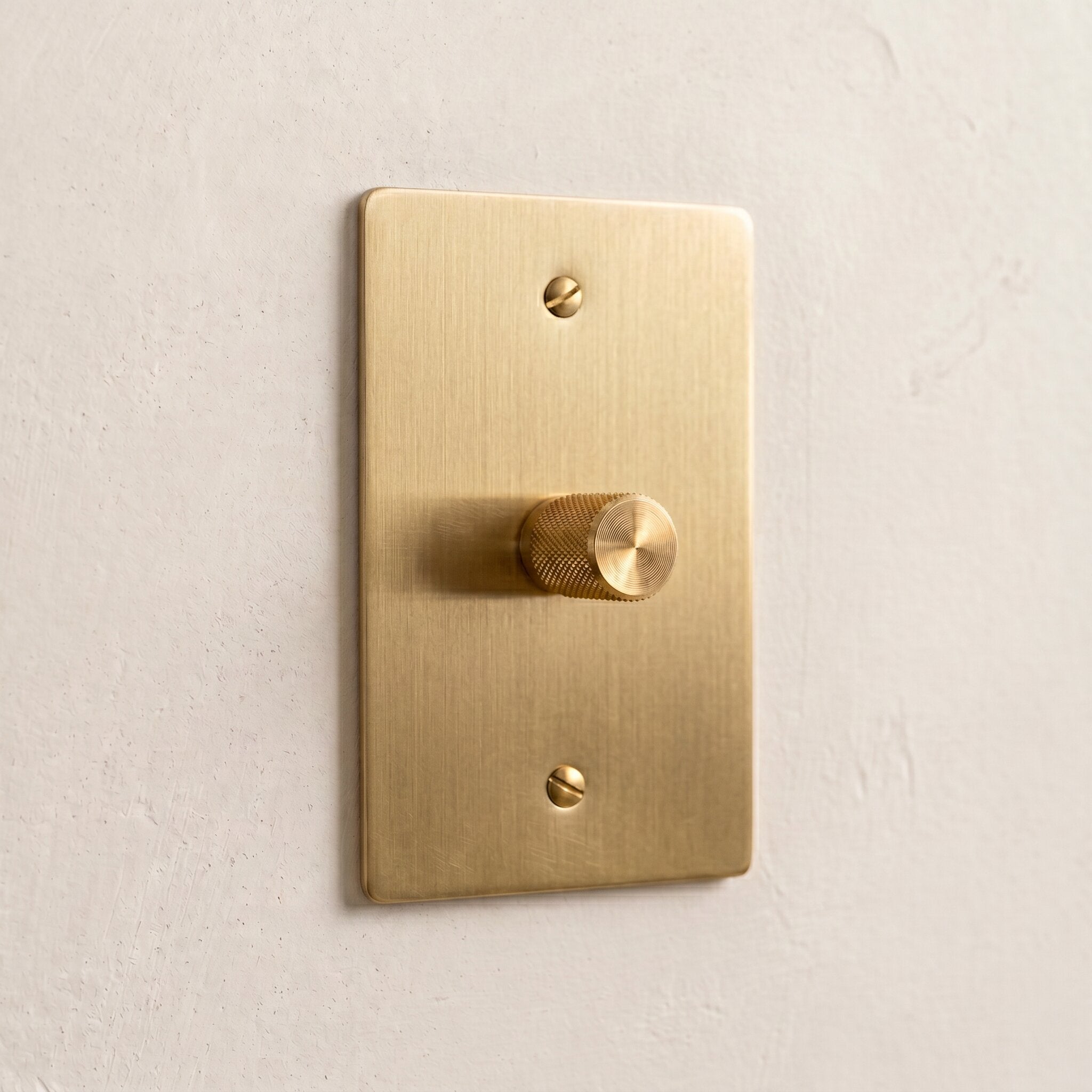

Satin Brass — a smooth brushed finish sealed with a protective lacquer. It maintains its original tone and slows down natural aging.

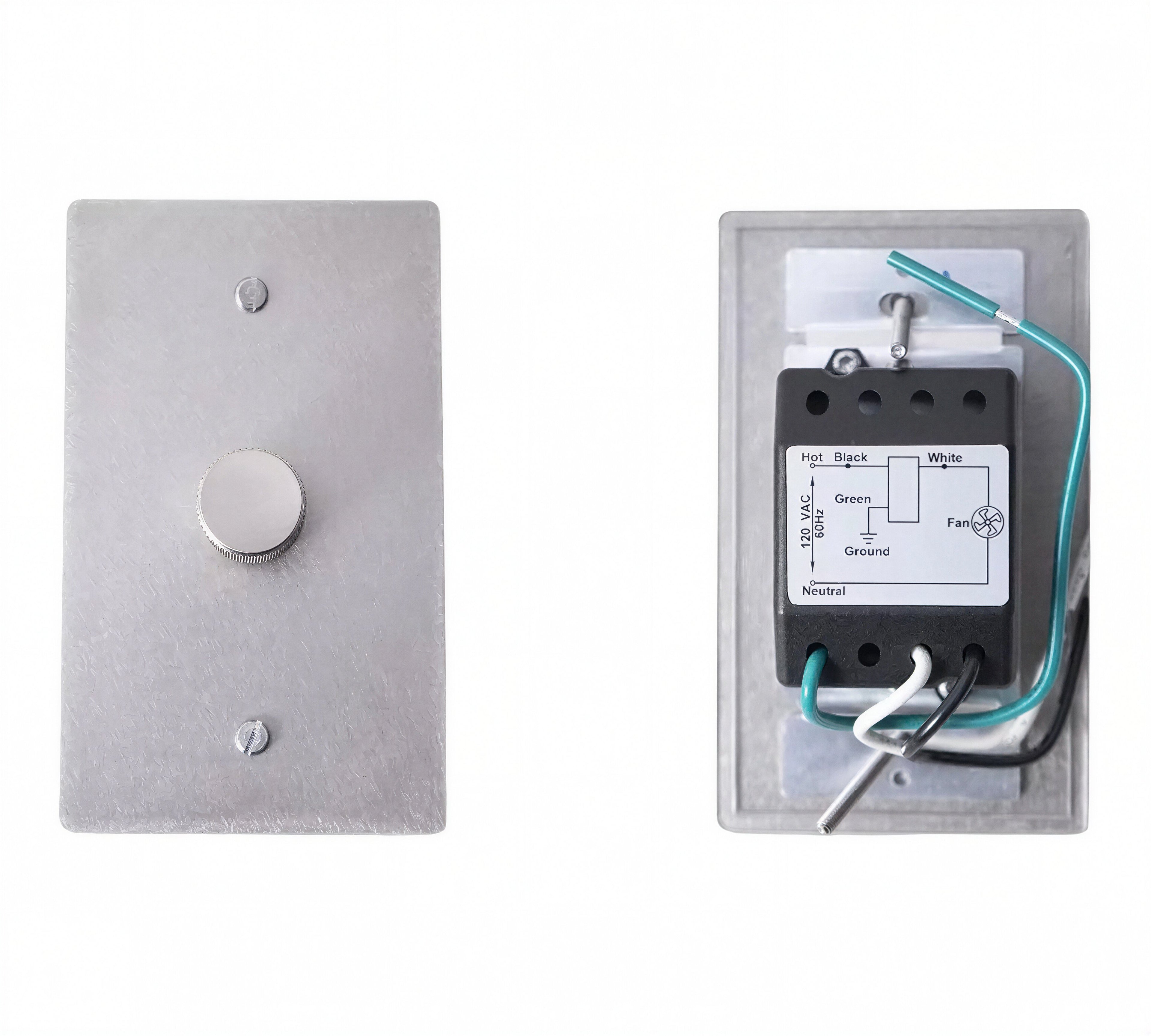

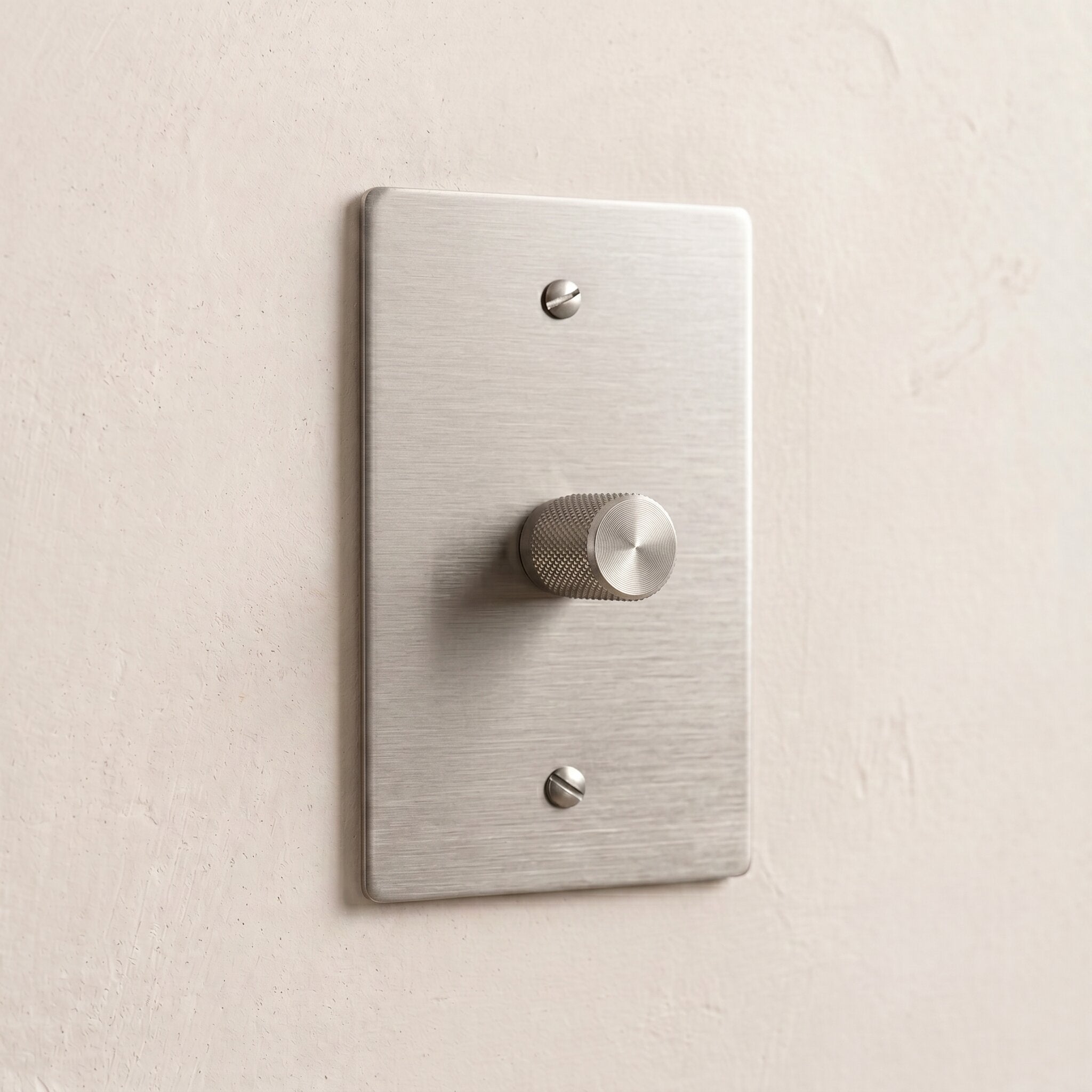

Stainless Steel — a clean, cool metallic finish with a refined brushed texture.

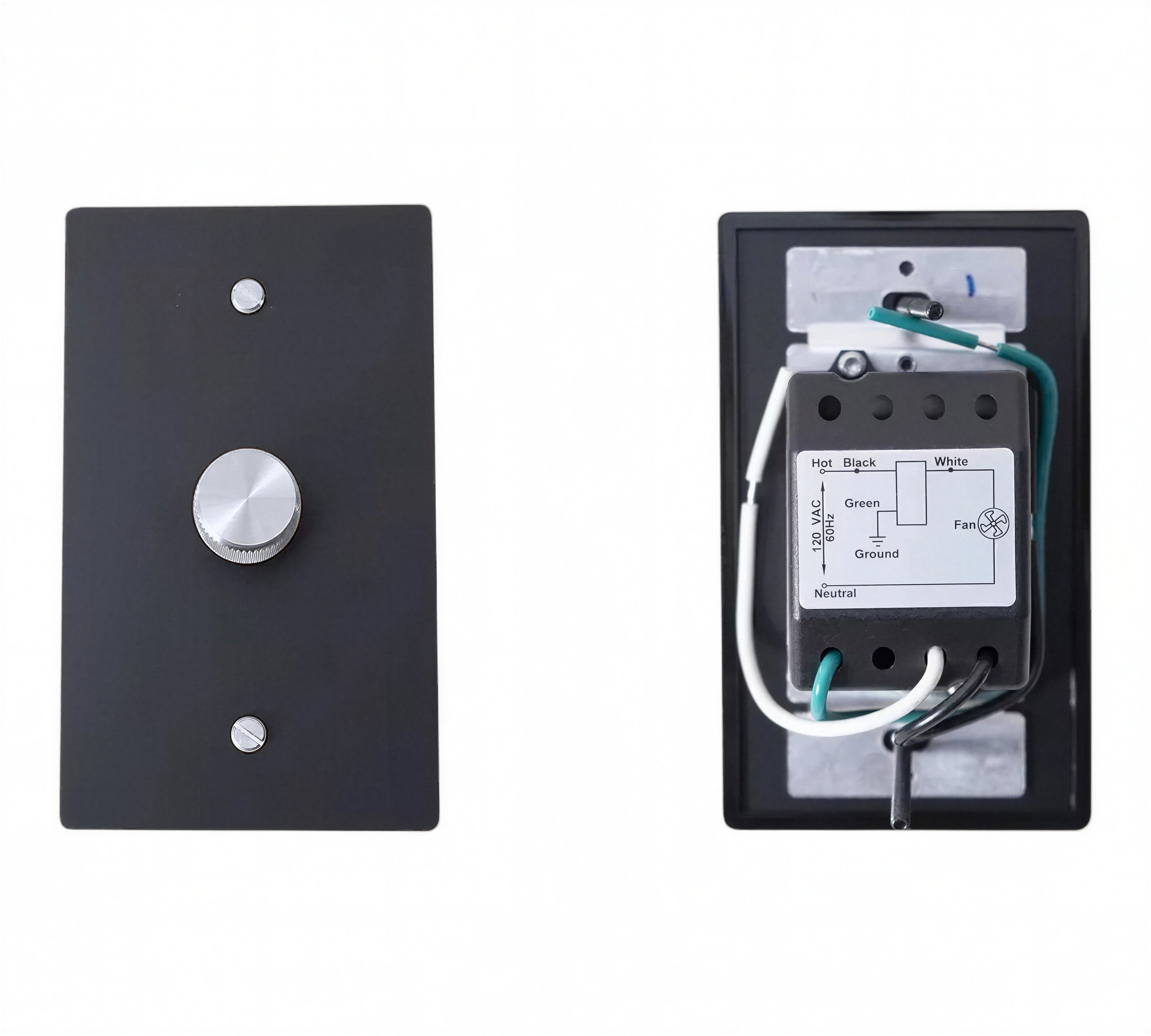

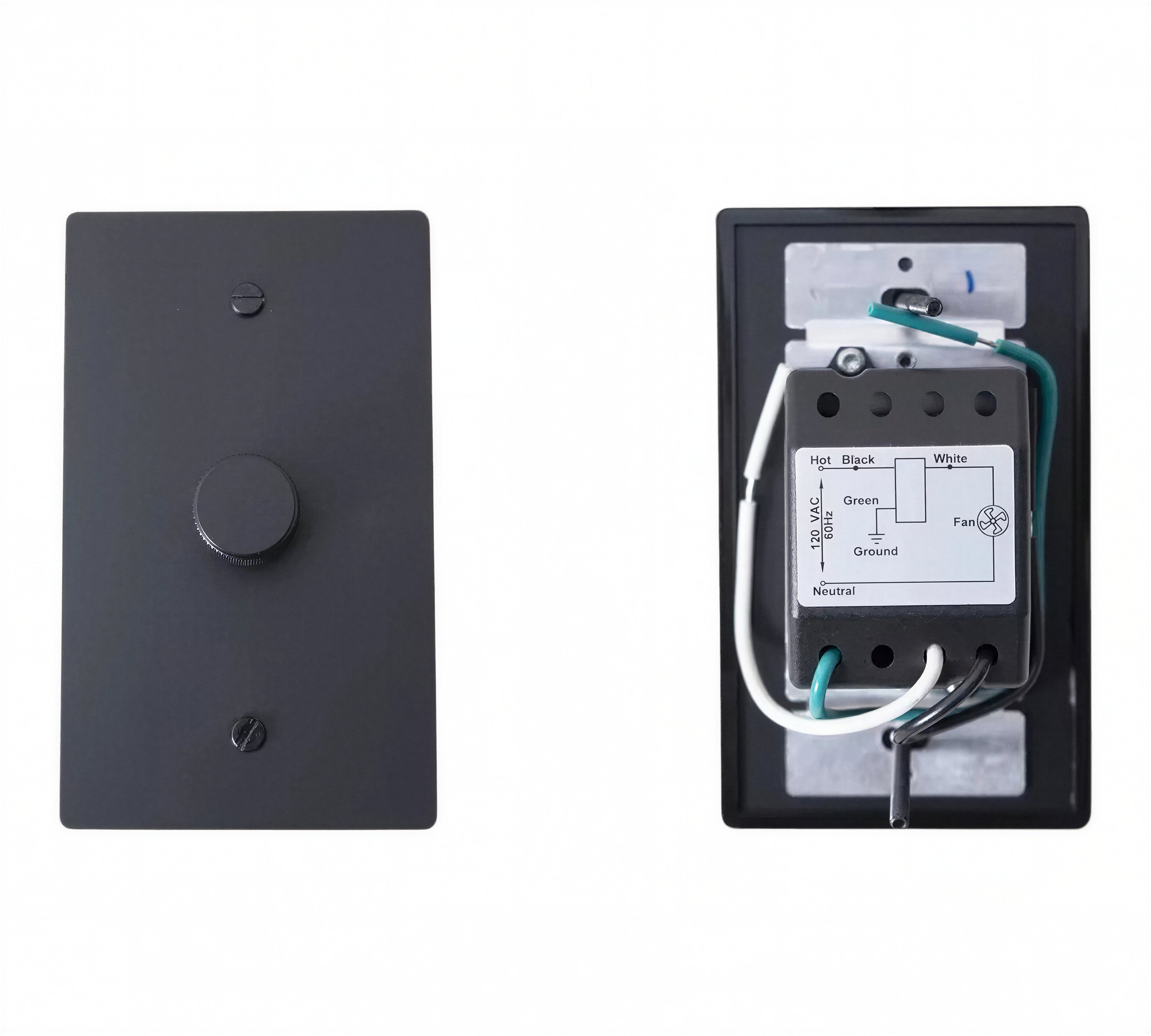

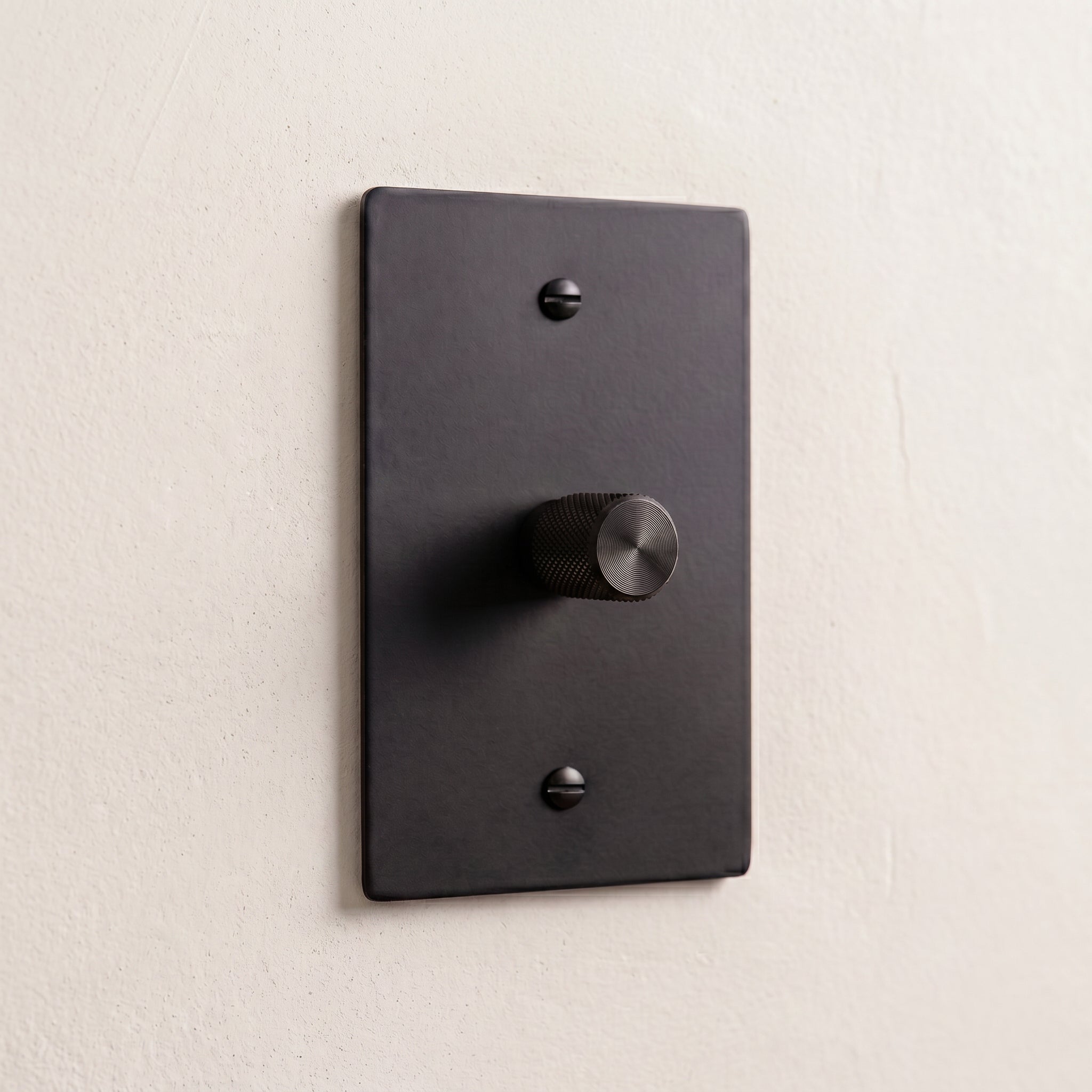

Matte Black — a solid brass base coated in a deep matte black for a bold, architectural presence.

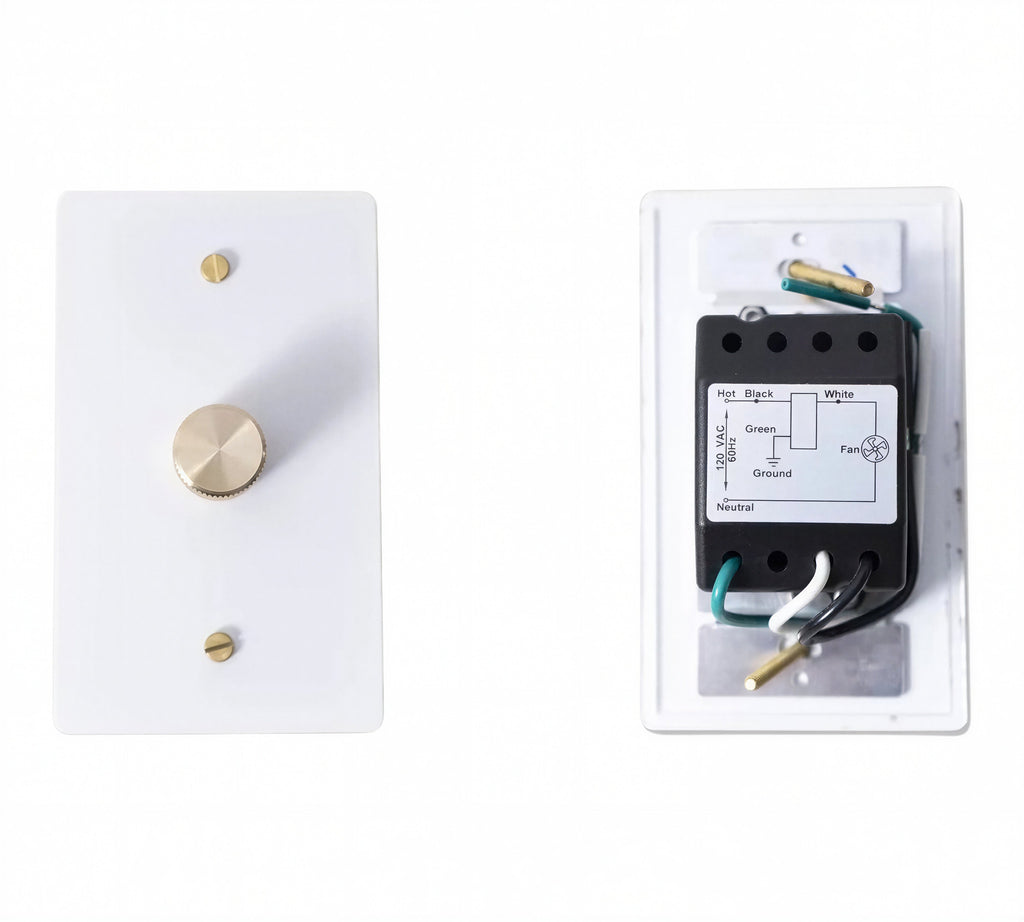

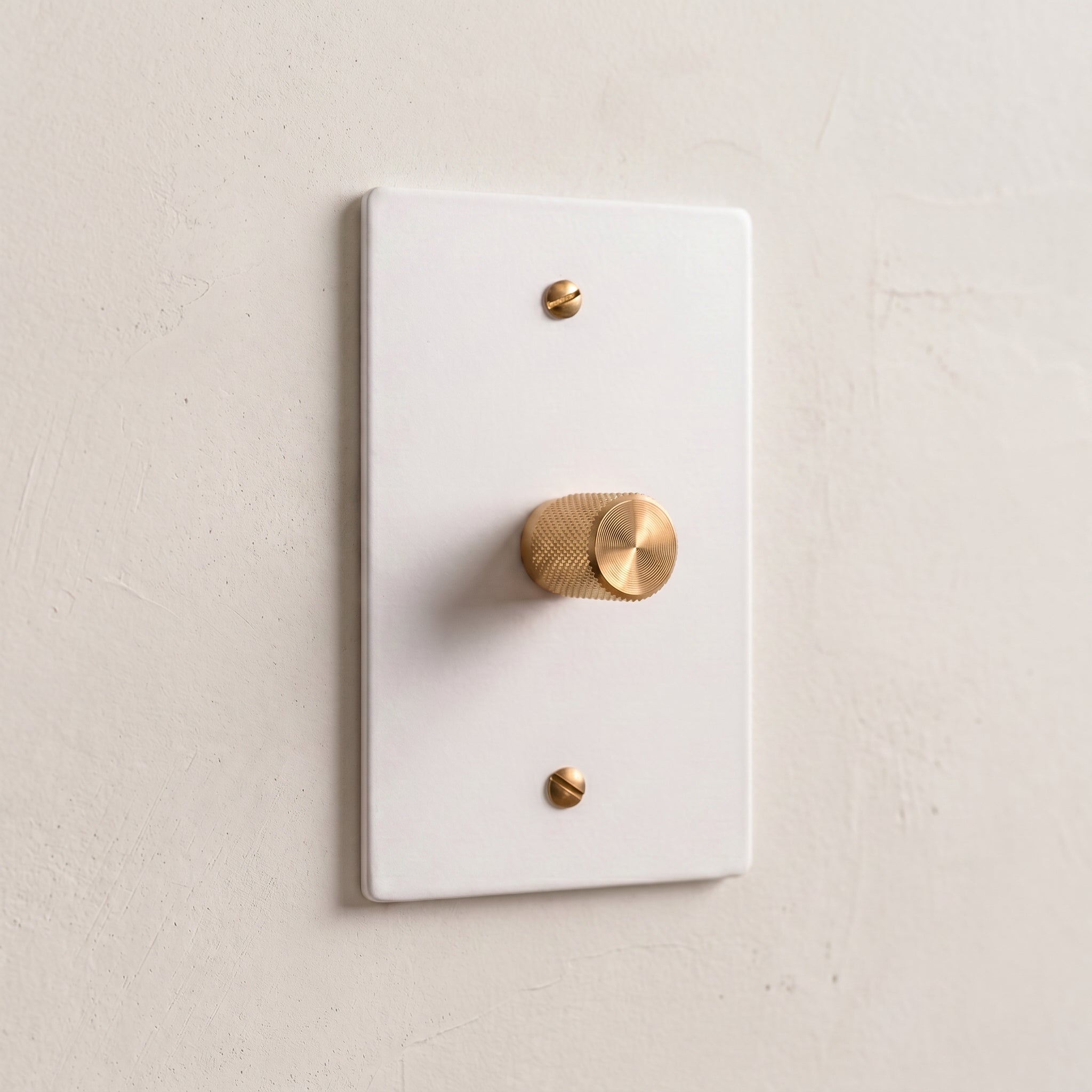

White — a clean, minimalist coating over solid brass for a crisp, understated look.

Batch variation & hand-finishing notes:

Because each plate is finished by hand, slight differences in tone and patina between batches are expected. Factors such as brushing pressure, polishing, paint mixing, and even humidity can influence the final appearance.

Most finishes may vary by up to approximately 10% between batches.

For Unlacquered Antique Brass, a distinct oxidizing process is used. As a result, variations can be more pronounced, sometimes reaching up to 30% lighter or darker tones.

To ensure consistency, we make every effort to ship items from the same production batch whenever possible.

These natural variations are an inherent characteristic of genuine brass and are not considered defects.

Product Includes

Brass plate, diamond cut dimmer knob, plus all required mounting hardware.

Installation Steps

Step 1: Turn Off the Power

Before you begin, switch off the power to the circuit at your home’s breaker panel or fuse box for safety.

Step 2: Remove the Old Cover Plate

Use a screwdriver to loosen the screws holding the existing cover plate. Remove it carefully and place it aside.

Step 3: Take Out the Old Switch

Unscrew the fasteners securing the old switch to the electrical box, then gently pull the switch outward.

Step 4: Disconnect the Wires

Carefully detach the wires from the old switch.

• If the wires are looped around screws, loosen the screws to release them.

• If the wires are pushed into holes at the back of the switch, you may need to cut and strip them using a wire stripper.

Step 5: Connect the Wires to the New Switch

Attach the wires to the new dimmer switch.

• If the switch uses screws, wrap the wires around them and tighten securely.

• If the switch has push in holes, insert the stripped wire ends into the openings.

Step 6: Secure the New Switch

Carefully place the wires back into the electrical box and fasten the new switch using the included screws.

Step 7: Attach the New Cover Plate

Position the new cover plate over the switch and secure it in place with the screws.

Step 8: Turn the Power Back On

Once everything is installed, restore power at the breaker panel or fuse box.

Step 9: Test Your New Switch

Turn the dimmer knob to confirm everything is working correctly. If installed properly, your lights should brighten and dim smoothly.

If anything seems unclear or does not feel right during installation, contact a licensed electrician. Safety should always come first.

The difference

Real brass, from the plate to the knob

One seamless plateNo frame, no second face plate, no seam: just one smooth, plain piece of brass around the dimmer.

Solid, never platedBrass all the way through, not a thin coat over zinc, steel or plastic. Nothing to peel or wear through.

Zero plastic you touchEvery part you see and touch is solid brass. Raw, whole and honest.

Heavy in the handA smooth, weighted turn from first glow to full light.

Side by side

How ours compares

	Studio Timeless	Plated designer dimmers	Standard plastic dimmers
Material	Solid brass all the way through	Plating over zinc, steel or plastic	Plastic
The plate	One smooth, seamless surface	A separate frame or second plate around the dimmer	Separate cover and rocker
Plastic you touch	None	Often, around the dimmer	All of it
Weight	Heavy, solid brass	Lighter	Featherweight
The feel	Weighted, precise turn	Softer, lighter action	Hollow
Over the years	Ages beautifully, nothing to peel	Plating can wear through	Yellows and scratches
Made	Finished by hand	Mass produced	Mass produced

How it's made

Made by hand, one piece at a time

Each plate is cut from solid brass and the knob is solid brass too. There is no plastic frame and no second face plate: the plate is one plain, smooth piece, so your wall reads as a single detail rather than a gadget.

Every piece is then finished by hand, brushed, aged or polished one at a time, and checked before it leaves the workshop. That is why no two plates are exactly alike, and why it feels so different the first time you reach for it.
