Low Voltage 0–10V LED Dimmer – Rotary Controller
Low Voltage 0–10V LED Dimmer – Rotary Controller
Add a custom engraving (optional) Free
Engraving is optional. Up to 9 characters per position. Leave a box empty for no engraving there.
The engraving sits between the upper screw and the knob, centered on each position.
- Solid brass, made by hand
- Fits standard US & Canadian boxes
- 30-day returns
- Free wall design help
Questions or custom requests? We're here to help.
Can't find the exact switch or layout you need?
Try our Product Configurator to build your perfect combo: mix toggles, dimmers, outlets, or order plates only in any 1–5 gang setup.
Description
This 0–10V / 1–10V low-voltage dimmer knob controller is designed to interface directly with the DIM+ and DIM− control wires of a compatible 0–10V or 1–10V LED driver, making it suitable for lighting systems that use a separate dimming signal rather than direct power control.
It delivers smooth, stepless adjustment from 5% to 100% brightness, ensuring flicker-free and silent operation when paired with a compatible driver and fixture. Typical applications include downlights, track lighting, wall washers, and plant/grow lights that support 0–10V or 1–10V dimming through their driver.
Please note: this is a low-voltage control device only and must not be connected directly to 120V or 240V AC power.

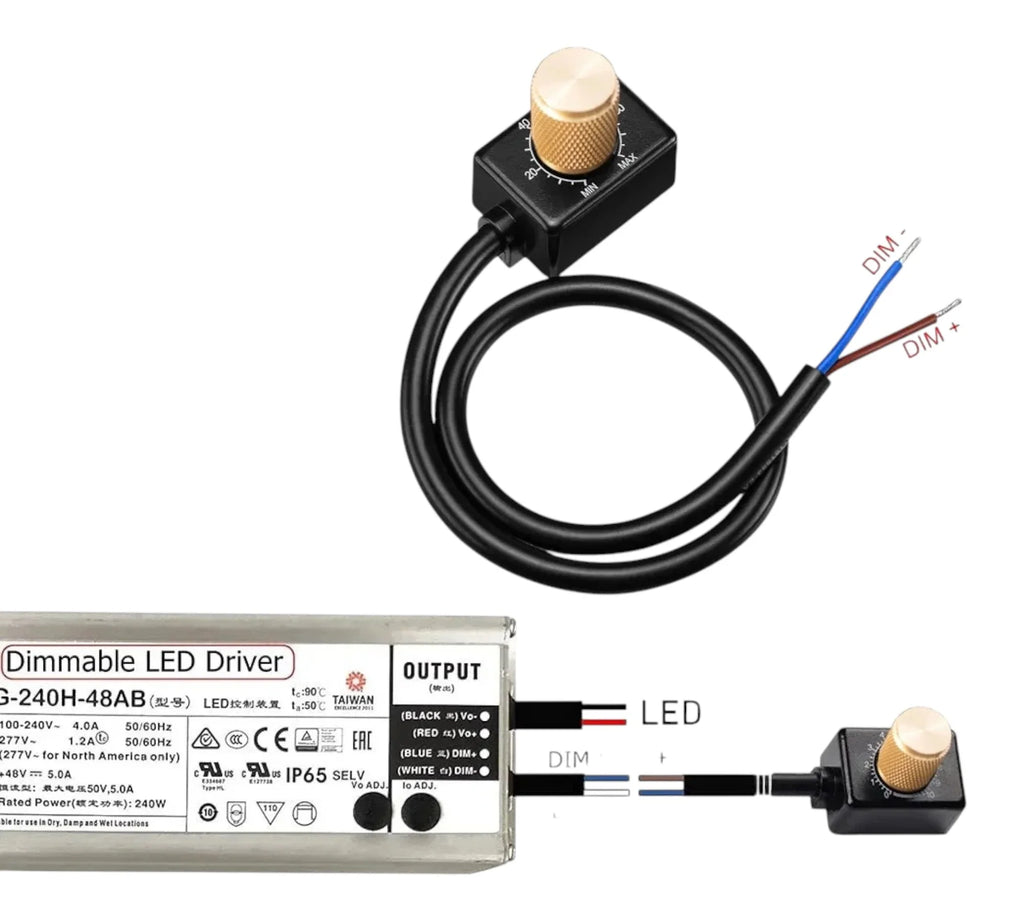

For installation, connect the unit to the driver’s DIM+ and DIM− terminals. Ensure the LED driver is properly ventilated and kept away from heat sources, and confirm that your system is specifically designed to accept a 0–10V / 1–10V control signal, as performance will depend on the driver and fixture used.

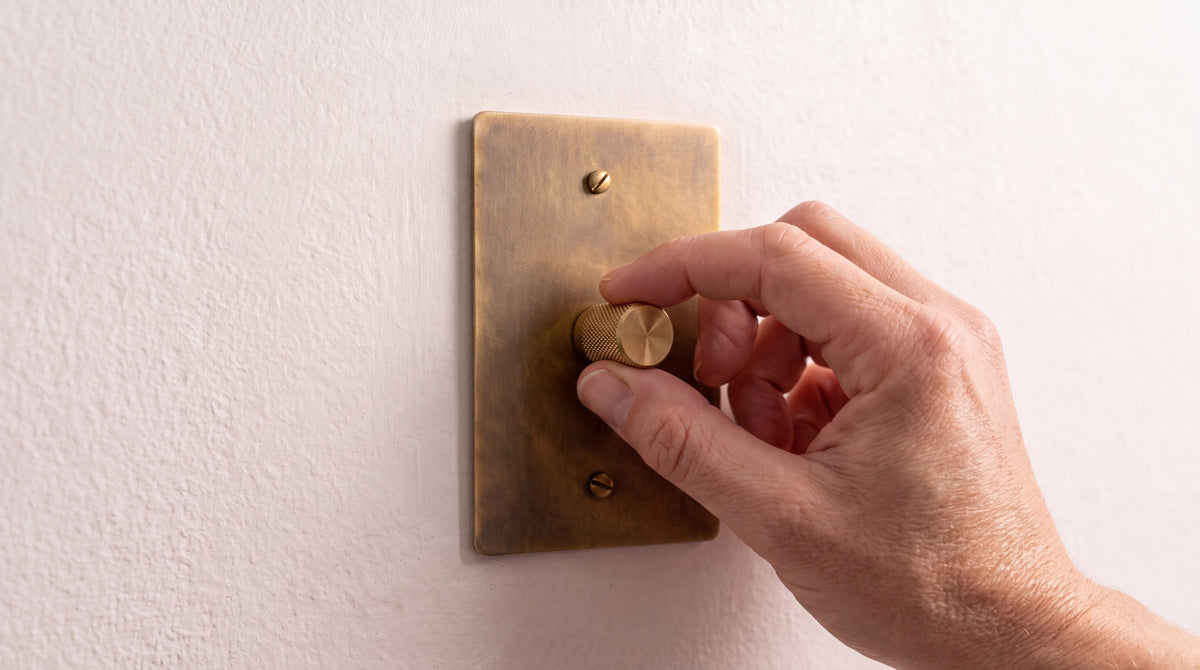

About Unlacquered Antique Brass: this is a handmade finish, made to order. Each piece is hand brushed, then oxidized by hand, so no two pieces are exactly alike and the brass keeps developing a natural patina over time. Current lead time for this finish: about 3 weeks of production before shipping.

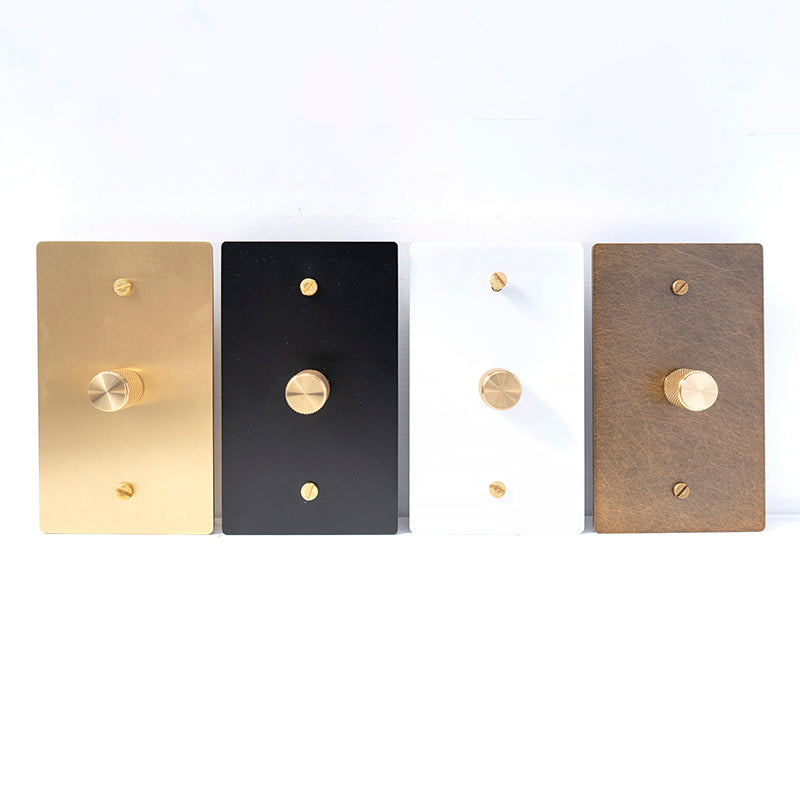

Finishes & Natural Variations
Our wall plates are crafted from solid brass and finished entirely by hand. This process gives each piece a deeper, more refined look than plated alternatives, while naturally allowing for subtle variations from one item to another.
Aged Bronze (Hand-Brushed) — a rich, deep tone with a soft, greenish patina. The hand-brushed process ensures that every piece has its own unique character.

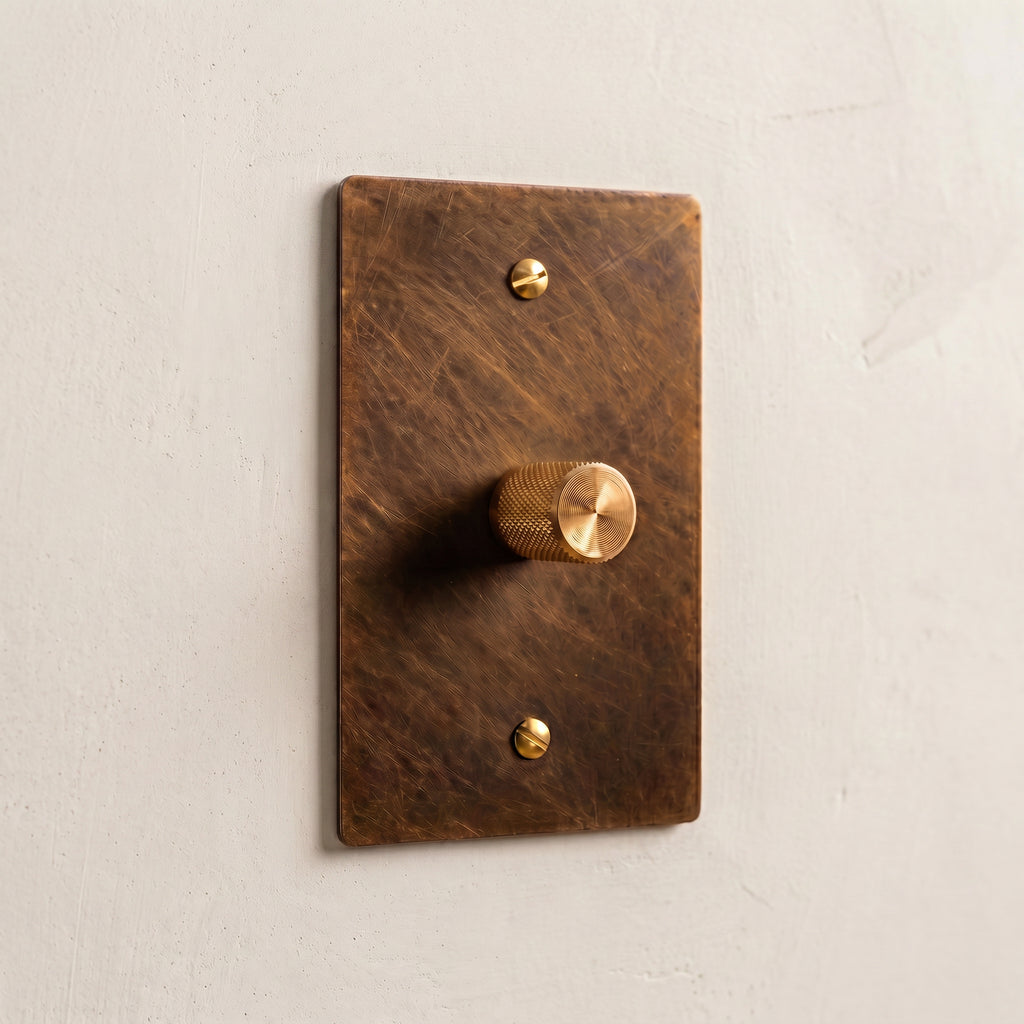

Antique Brass (Hand-Brushed) — an artisanal brushed finish with intentional variation. These differences are part of the design language, not imperfections.
Unlacquered Antique Brass (Hand-Brushed) — a living finish with no protective coating. Delivered with an aged appearance, it will continue to evolve over time as it reacts to air, touch, and its environment.

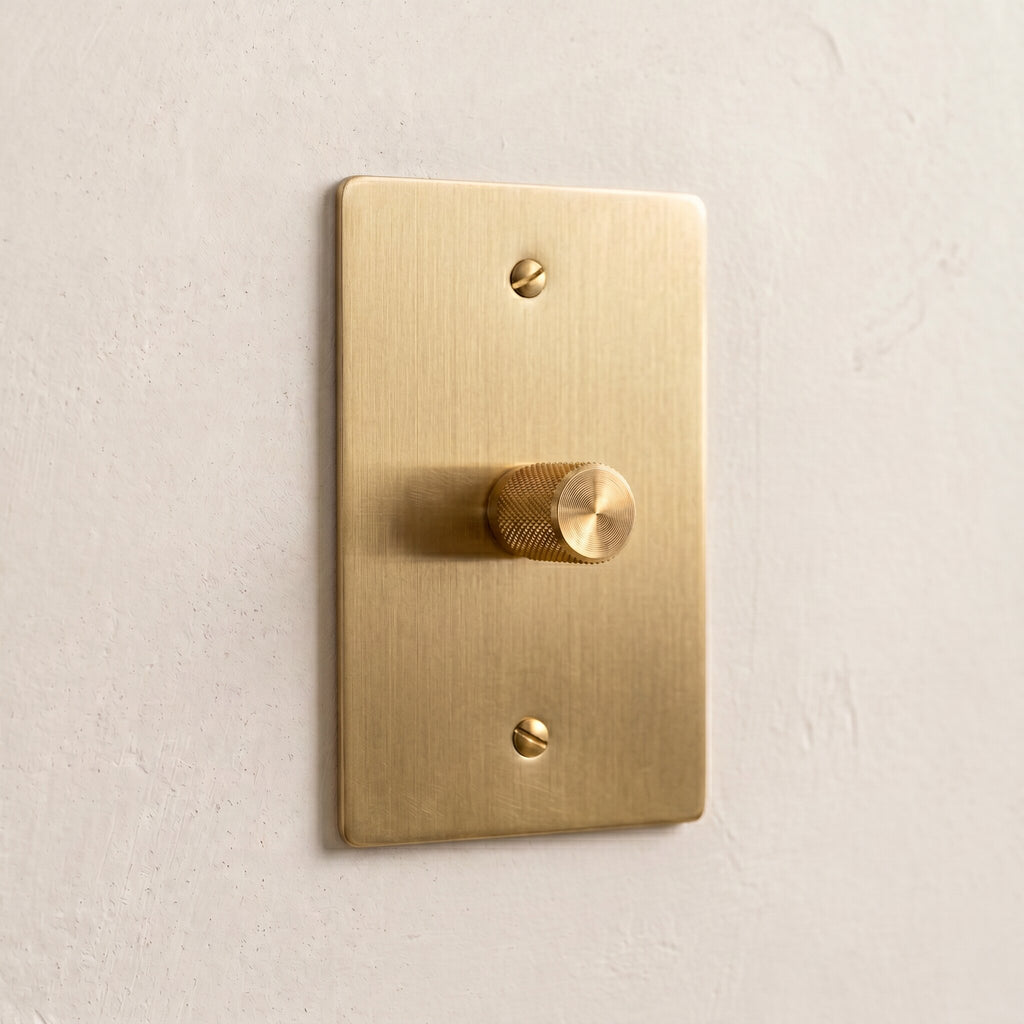

Satin Brass — a smooth brushed finish sealed with a protective lacquer. It maintains its original tone and slows down natural aging.
Stainless Steel — a clean, cool metallic finish with a refined brushed texture.

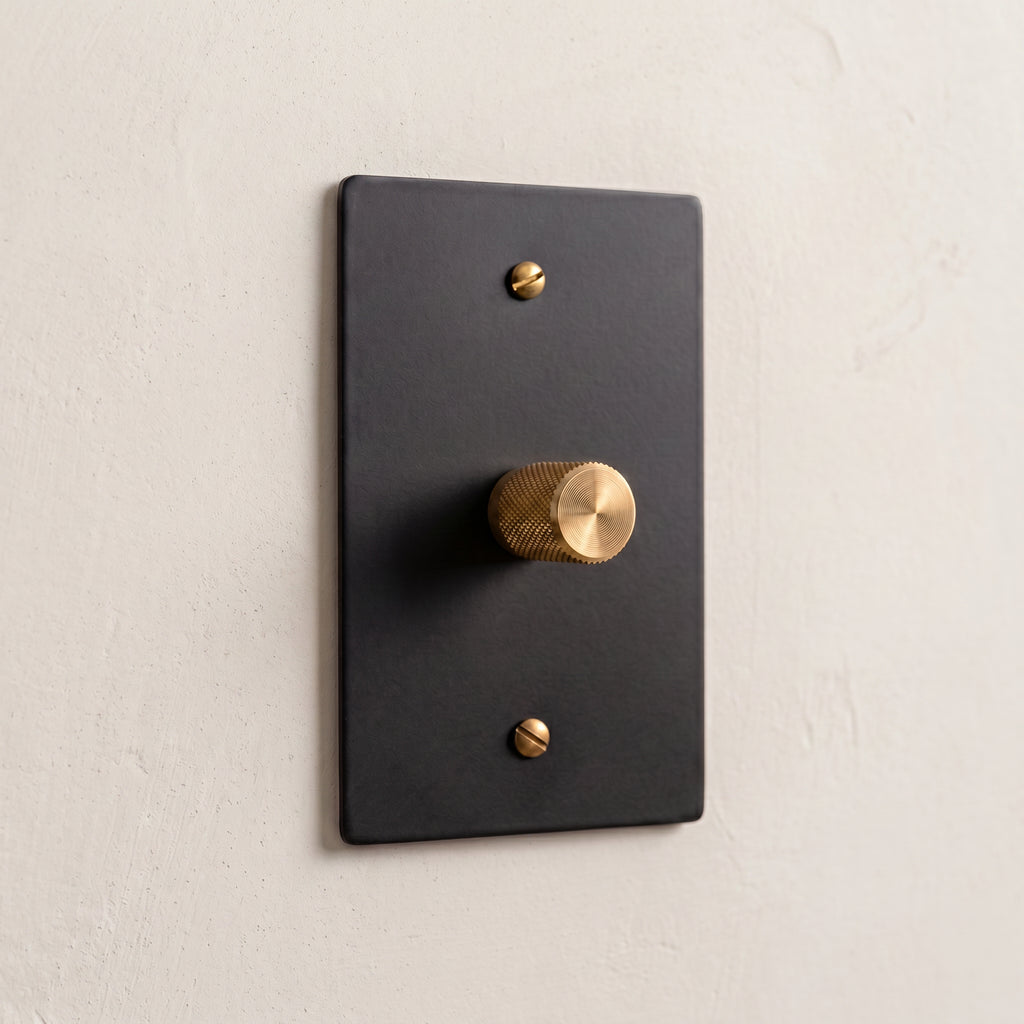

Matte Black — a solid brass base coated in a deep matte black for a bold, architectural presence.

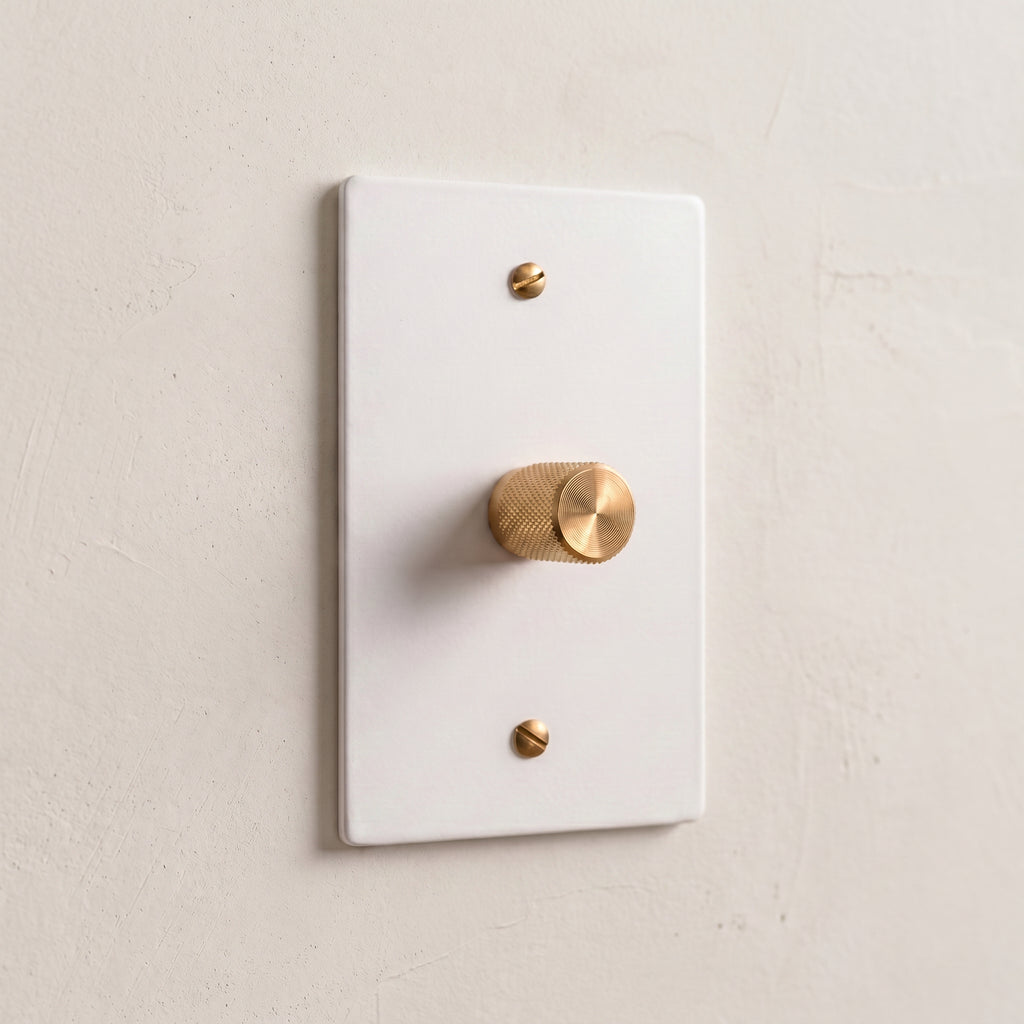

White — a clean, minimalist coating over solid brass for a crisp, understated look.
Batch variation & hand-finishing notes:
Because each plate is finished by hand, slight differences in tone and patina between batches are expected. Factors such as brushing pressure, polishing, paint mixing, and even humidity can influence the final appearance.
Most finishes may vary by up to approximately 10% between batches.
For Unlacquered Antique Brass, a distinct oxidizing process is used. As a result, variations can be more pronounced, sometimes reaching up to 30% lighter or darker tones.
To ensure consistency, we make every effort to ship items from the same production batch whenever possible.
These natural variations are an inherent characteristic of genuine brass and are not considered defects.
Installation Guide
Product Includes
Brass plate, diamond cut dimmer knob, plus all required mounting hardware.
Installation Steps
Step 1: Turn Off the Power
Before you begin, switch off the power to the circuit at your home’s breaker panel or fuse box for safety.
Step 2: Remove the Old Cover Plate
Use a screwdriver to loosen the screws holding the existing cover plate. Remove it carefully and place it aside.
Step 3: Take Out the Old Switch
Unscrew the fasteners securing the old switch to the electrical box, then gently pull the switch outward.
Step 4: Disconnect the Wires
Carefully detach the wires from the old switch.
• If the wires are looped around screws, loosen the screws to release them.
• If the wires are pushed into holes at the back of the switch, you may need to cut and strip them using a wire stripper.
Step 5: Connect the Wires to the New Switch
Attach the wires to the new dimmer switch.
• If the switch uses screws, wrap the wires around them and tighten securely.
• If the switch has push in holes, insert the stripped wire ends into the openings.
Step 6: Secure the New Switch
Carefully place the wires back into the electrical box and fasten the new switch using the included screws.
Step 7: Attach the New Cover Plate
Position the new cover plate over the switch and secure it in place with the screws.
Step 8: Turn the Power Back On
Once everything is installed, restore power at the breaker panel or fuse box.
Step 9: Test Your New Switch
Turn the dimmer knob to confirm everything is working correctly. If installed properly, your lights should brighten and dim smoothly.
If anything seems unclear or does not feel right during installation, contact a licensed electrician. Safety should always come first.
Customize your piece
Make it your own
Our in house specialists can personalize almost any order.
Popular Changes:
• Adjust hanging length
• Change the finish or paint color
• Select a different light color
• Add a dimmable option
• Increase or reduce the size
• Request a full redesign of the fixture based on your idea
What We Do:
• Handle the custom changes listed above
• Prepare CAD drawings for your custom concept
• Place a 3D render of the product into your photo
Connect with an expert by live chat or call us anytime from 9AM EST to 6PM EST.
You can also reach us by email.
The difference
Real brass, from the plate to the knob
Side by side
How ours compares
| Studio Timeless | Plated designer dimmers | Standard plastic dimmers | |
|---|---|---|---|
| Material | Solid brass all the way through | Plating over zinc, steel or plastic | Plastic |
| The plate | One smooth, seamless surface | A separate frame or second plate around the dimmer | Separate cover and rocker |
| Plastic you touch | None | Often, around the dimmer | All of it |
| Weight | Heavy, solid brass | Lighter | Featherweight |
| The feel | Weighted, precise turn | Softer, lighter action | Hollow |
| Over the years | Ages beautifully, nothing to peel | Plating can wear through | Yellows and scratches |
| Made | Finished by hand | Mass produced | Mass produced |
How it's made
Made by hand, one piece at a time
Each plate is cut from solid brass and the knob is solid brass too. There is no plastic frame and no second face plate: the plate is one plain, smooth piece, so your wall reads as a single detail rather than a gadget.
Every piece is then finished by hand, brushed, aged or polished one at a time, and checked before it leaves the workshop. That is why no two plates are exactly alike, and why it feels so different the first time you reach for it.
Build your wall
Make it exactly yours
Technical Drawings for the Brass Toggle Switch (1 to 5 Gang)
Frequently asked questions
Is the product handcrafted?
Yes. Each Brass Rotary Dimmer Switch is carefully made by hand, with close attention to finish and detail.
Is the dimmer switch UL certified?
Yes. It is UL listed, confirming that it meets recognized safety standards.
How durable is the product?
Its solid brass construction gives it excellent strength and long term reliability, while also providing a smooth and premium tactile experience.
What materials is it made from?
This switch is made from solid brass, giving it a substantial feel, strong durability, and a refined decorative look.
Does it fit standard US electrical boxes?
Yes. It is designed for standard US electrical boxes, which makes it suitable for both replacements and new installations.
How long does installation usually take?
In many cases, installation takes only around 5 minutes, making it a simple upgrade for your space.
Does the switch support Triac dimming?
Yes. It is compatible with Triac dimming and works with supported LED lighting.
What is the weight of the dimmer switch?
About 215 g (7.6 oz) per gang, plate and dimmer together, weighed from our own shipments: about 215 g for a 1 gang, up to about 1,075 g (2.4 lb) for a 5 gang. Several times the weight of a standard plastic dimmer.
Is the dimmer switch suitable for historic homes?
Yes. Its classic brass design makes it especially well suited to traditional interiors and historic properties.
Is this dimmer switch compatible with LED bulbs?
Yes. The Brass Rotary Dimmer Switch can be used with LED bulbs when paired with Triac dimming.
