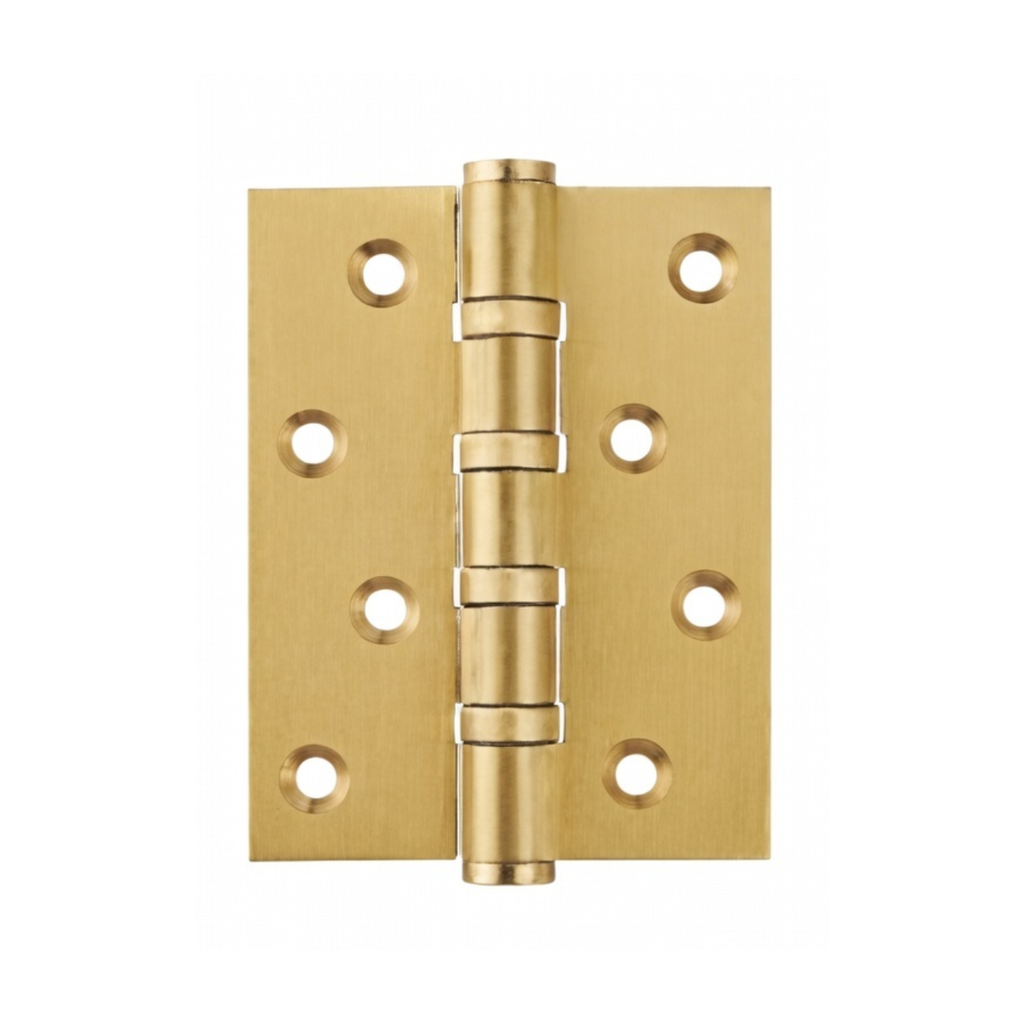

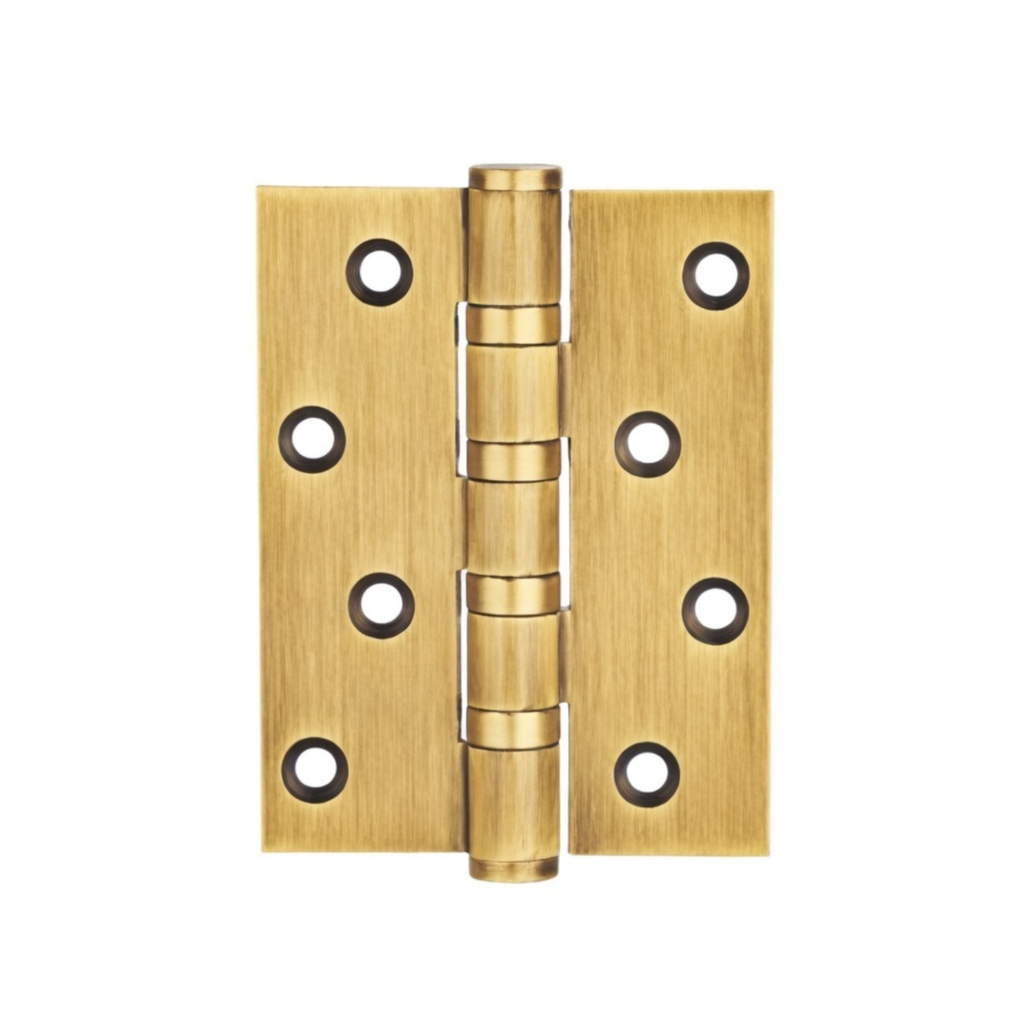

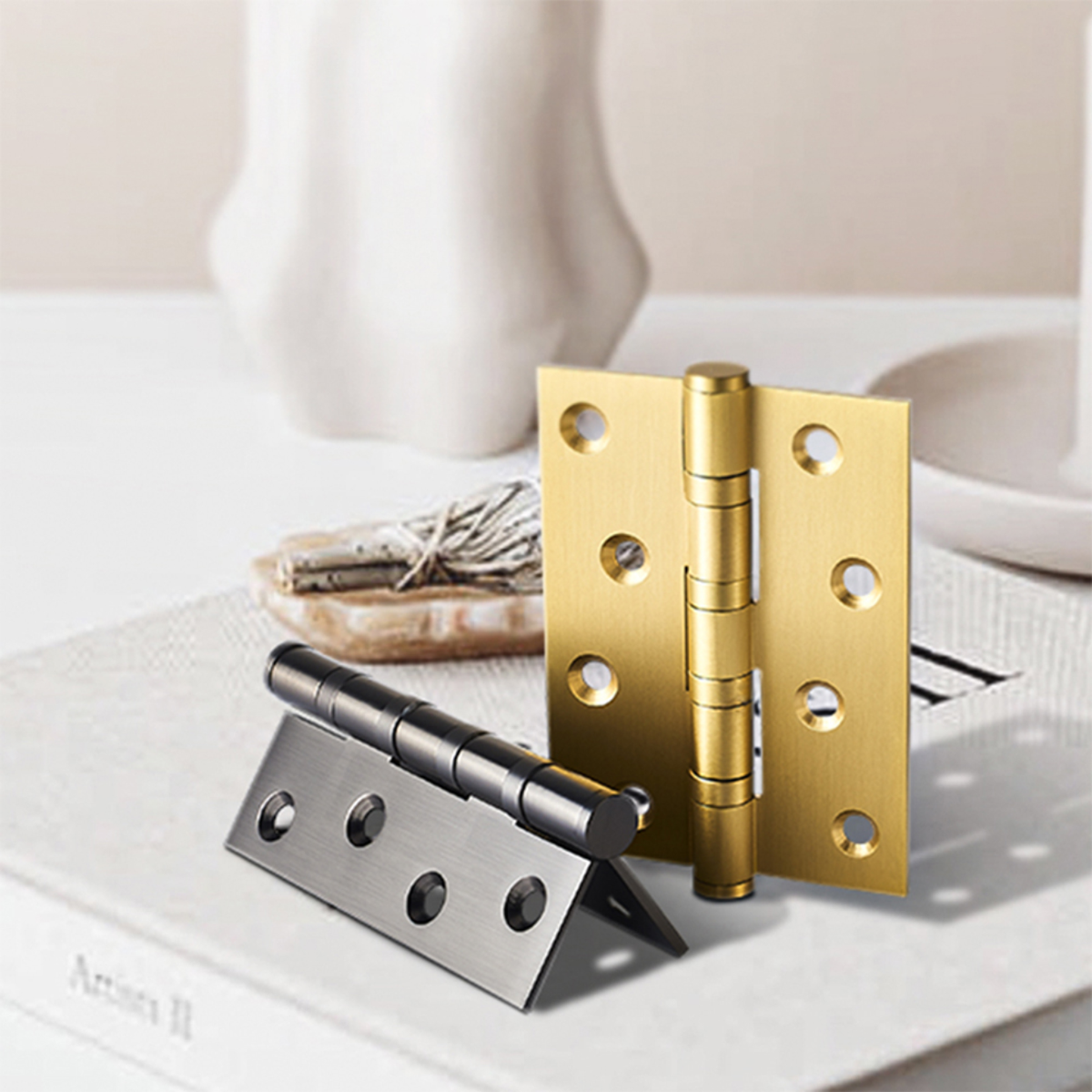

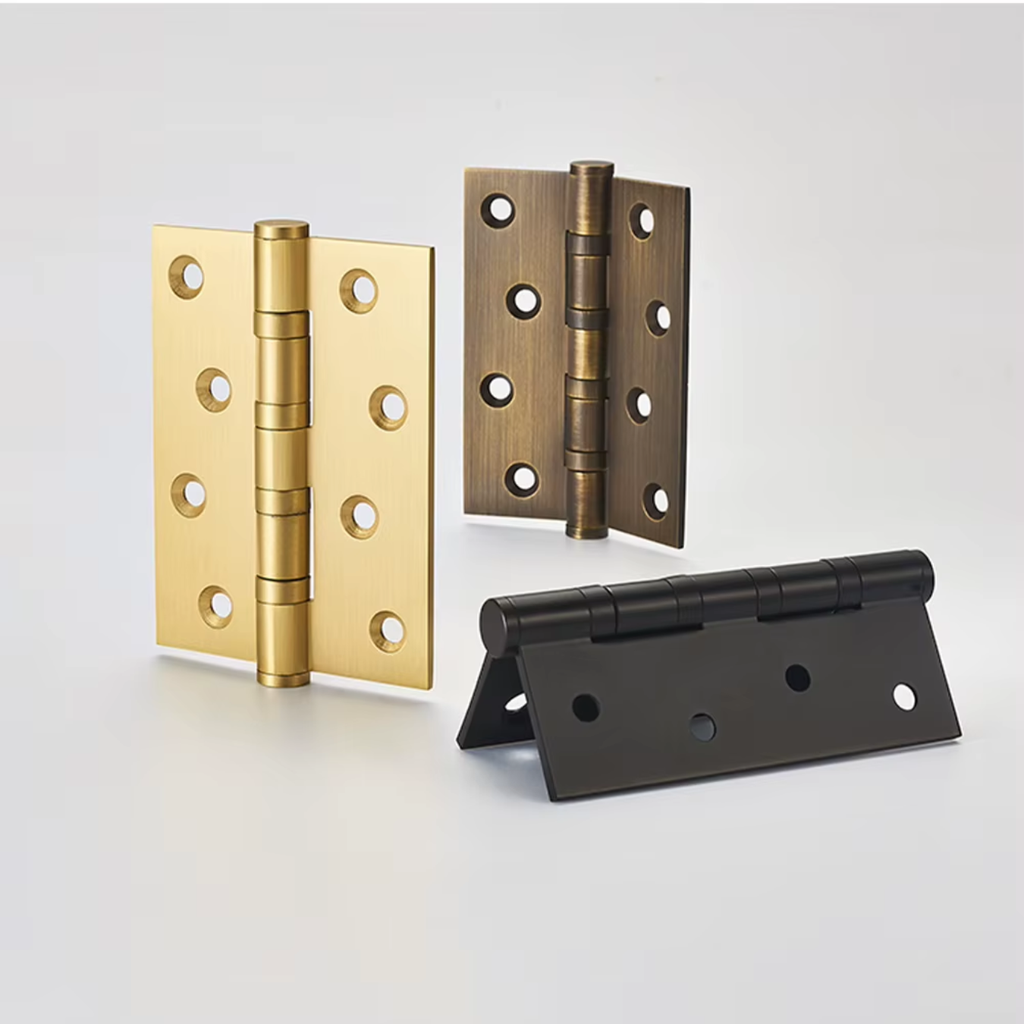

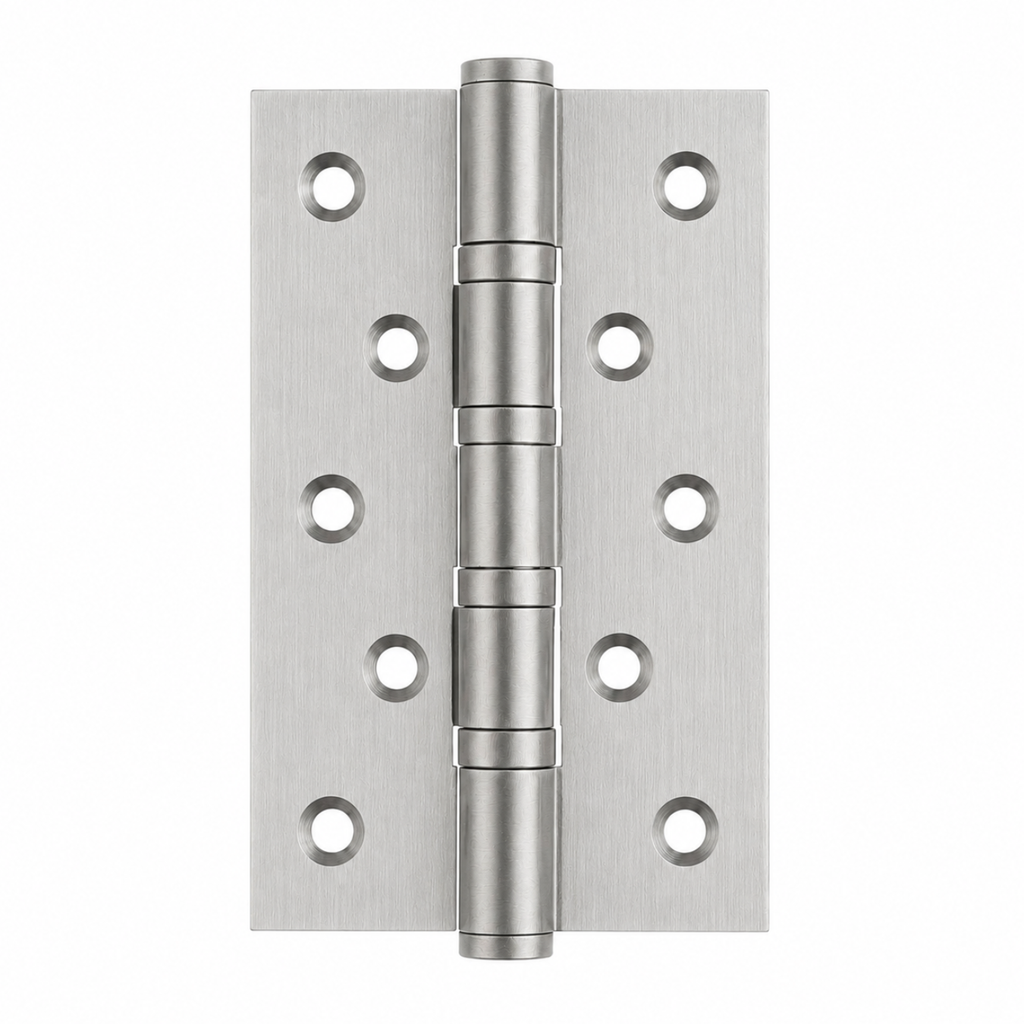

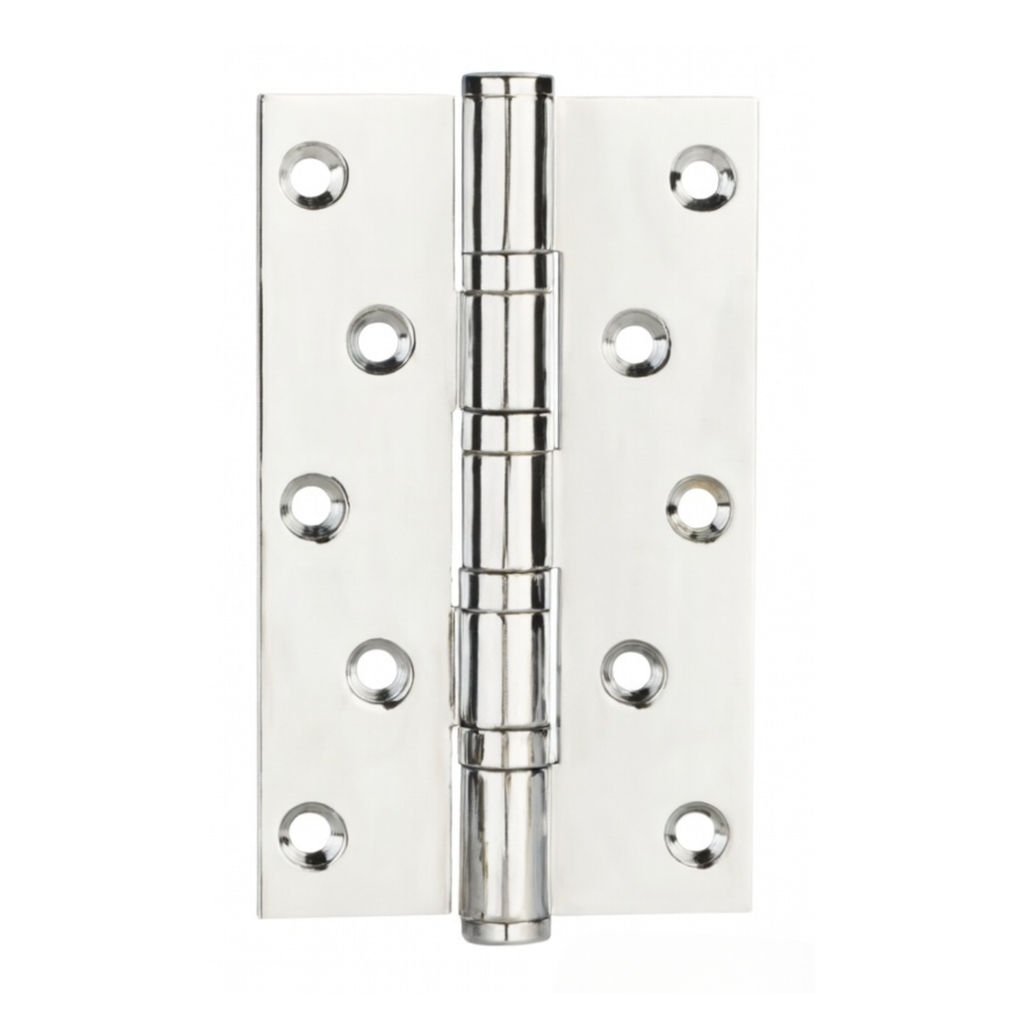

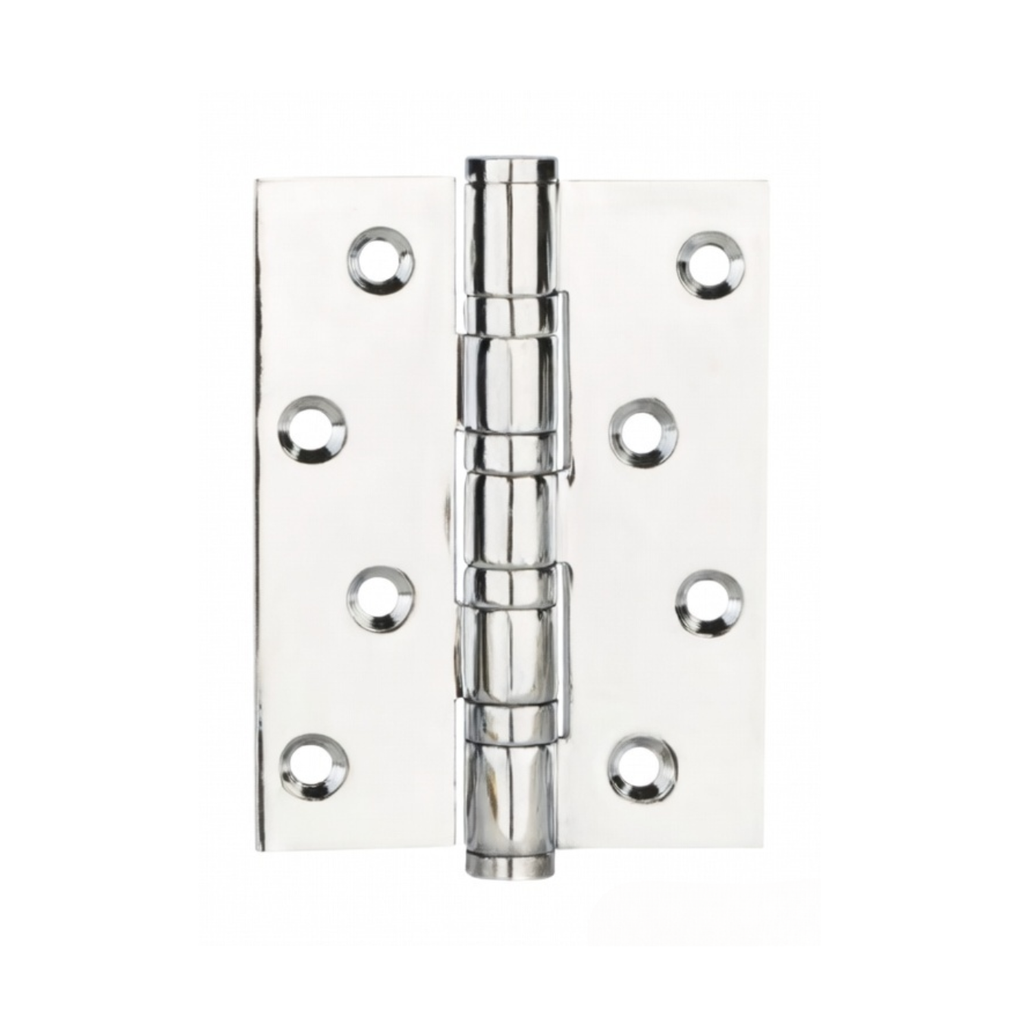

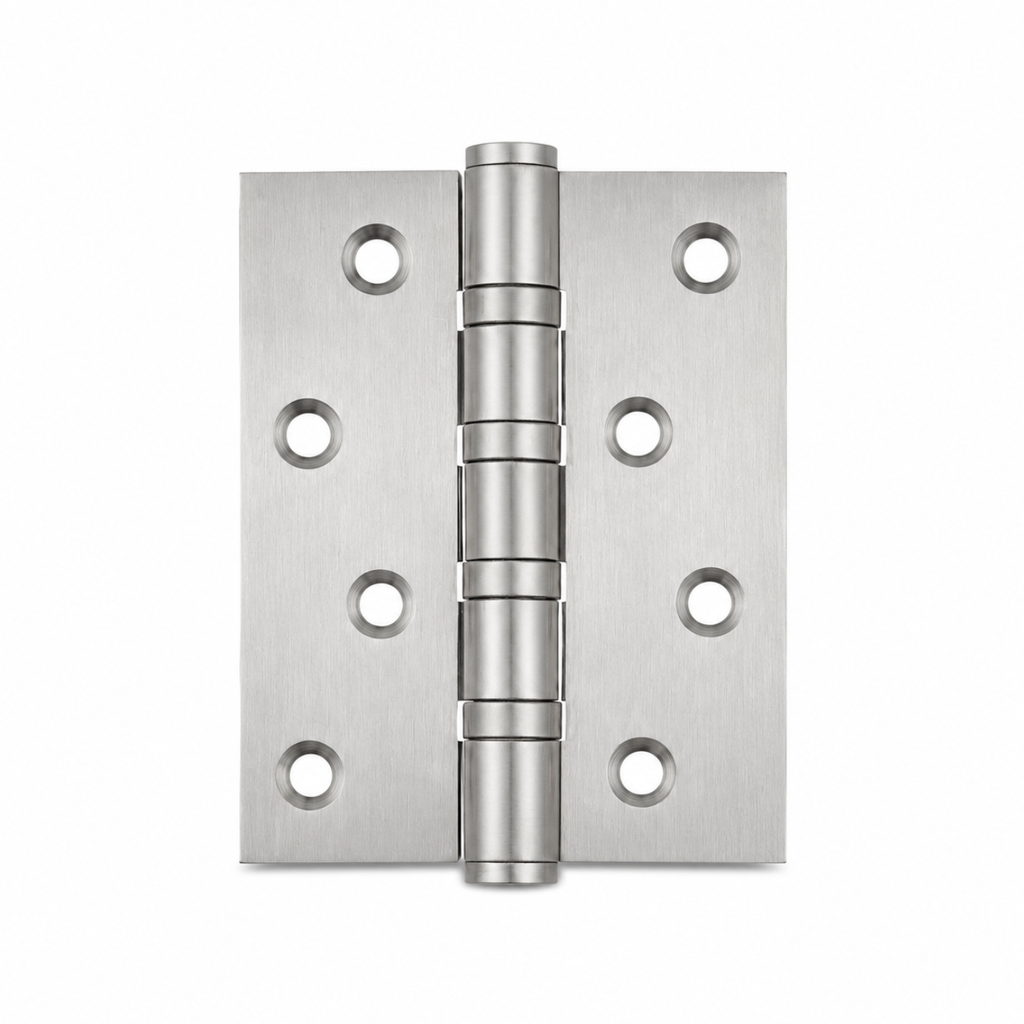

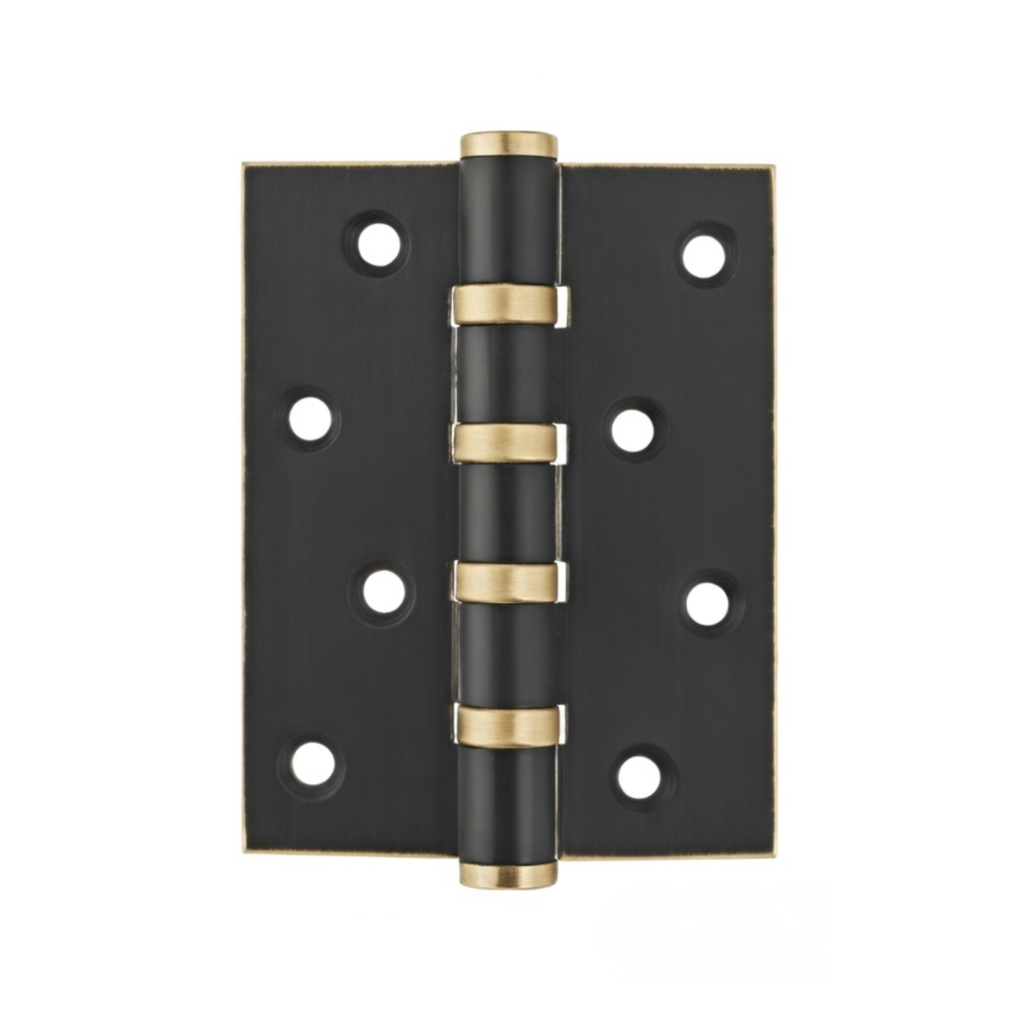

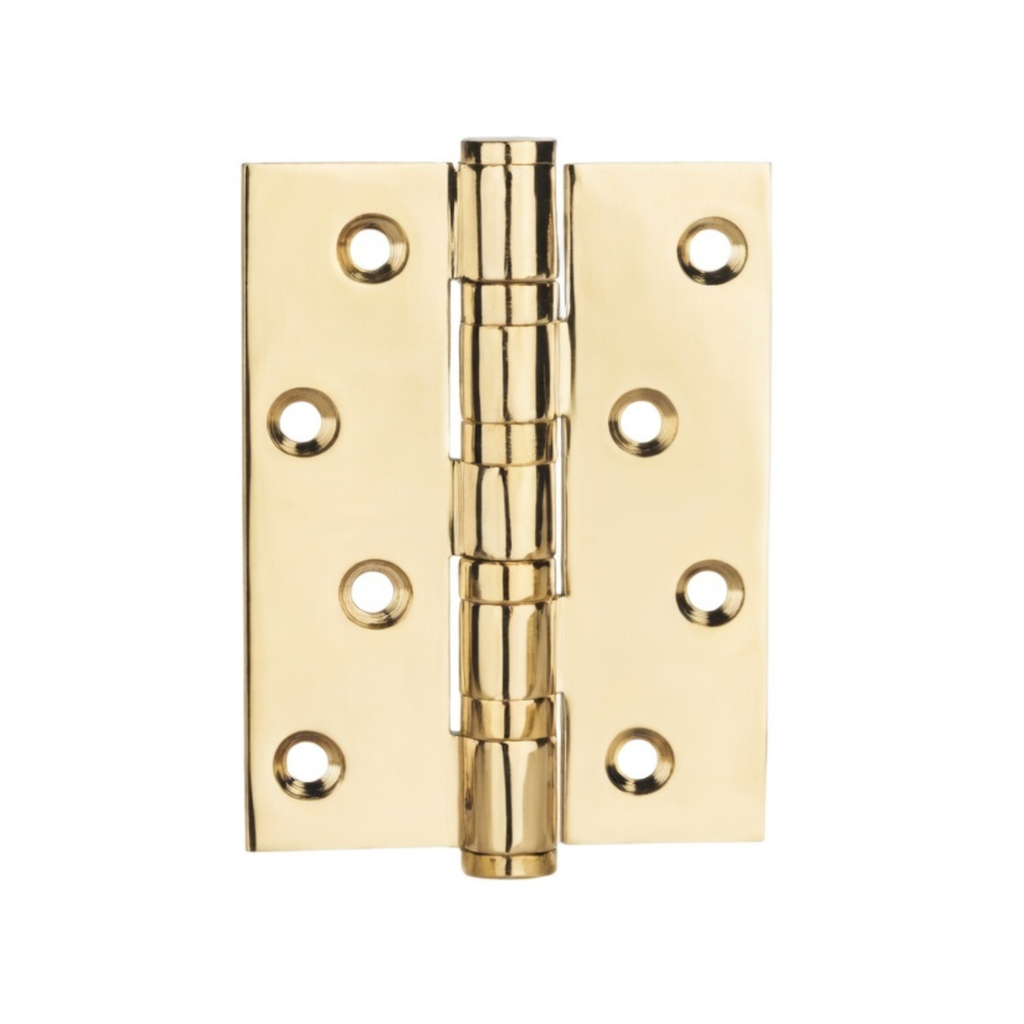

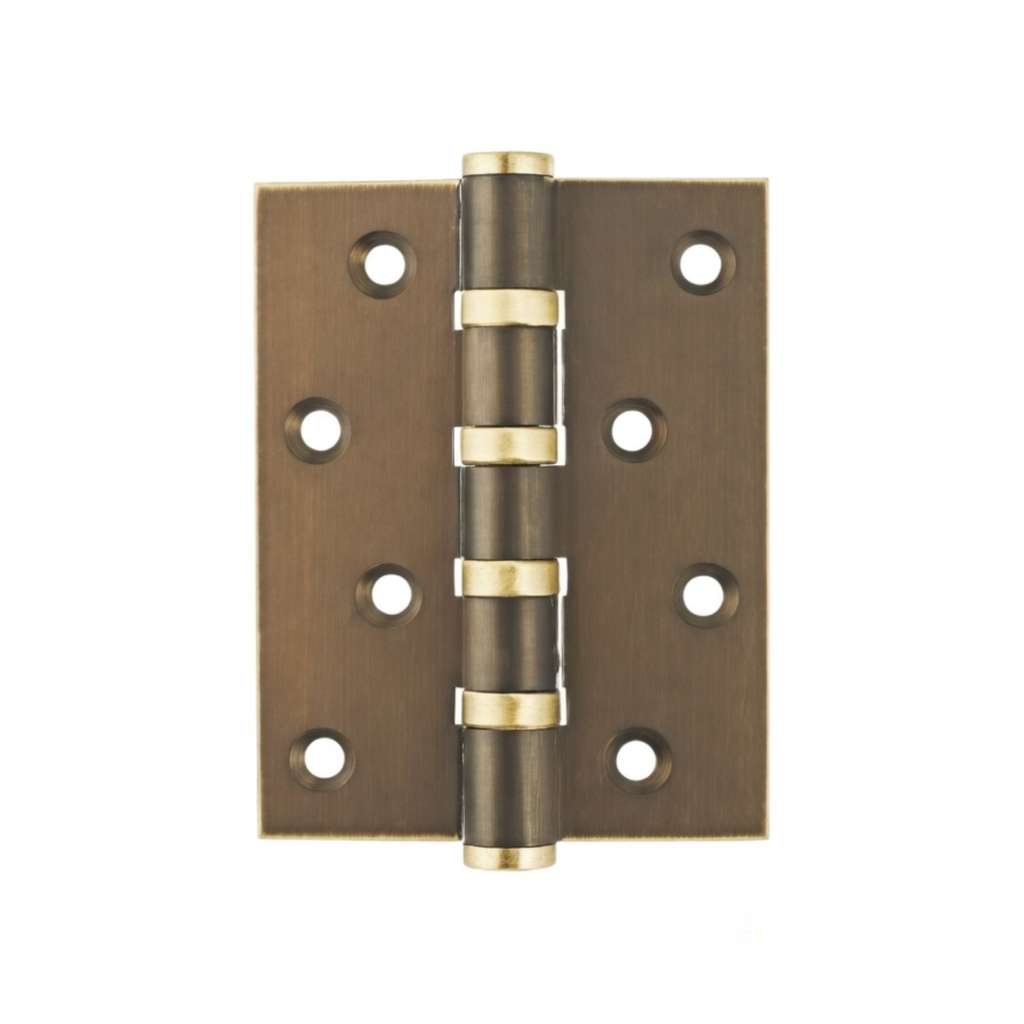

Stepped Brass Butt Hinge — 4" or 5" H × 3.03" W
Stepped Brass Butt Hinge — 4" or 5" H × 3.03" W
Questions or custom requests? We're here to help.
Can't find the exact switch or layout you need?
Try our Product Configurator to build your perfect combo: mix toggles, dimmers, outlets, or order plates only in any 1–5 gang setup.
Description

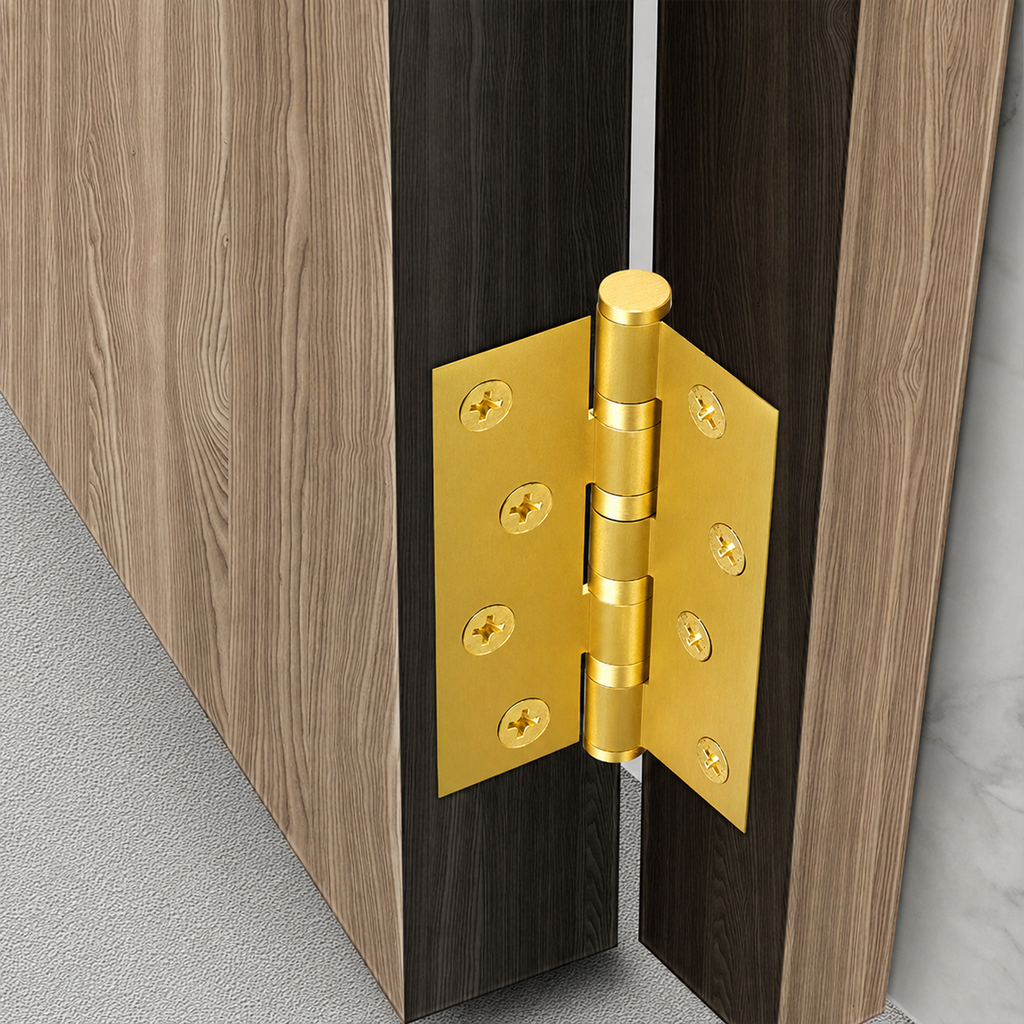

Crafted from solid brass, this stepped butt hinge combines lasting durability with a clean architectural profile for interior doors. The structured stepped barrel gives the hinge a tailored, refined appearance, making it suitable for both classic and contemporary interiors.
Specifications:
• Material: Solid Brass

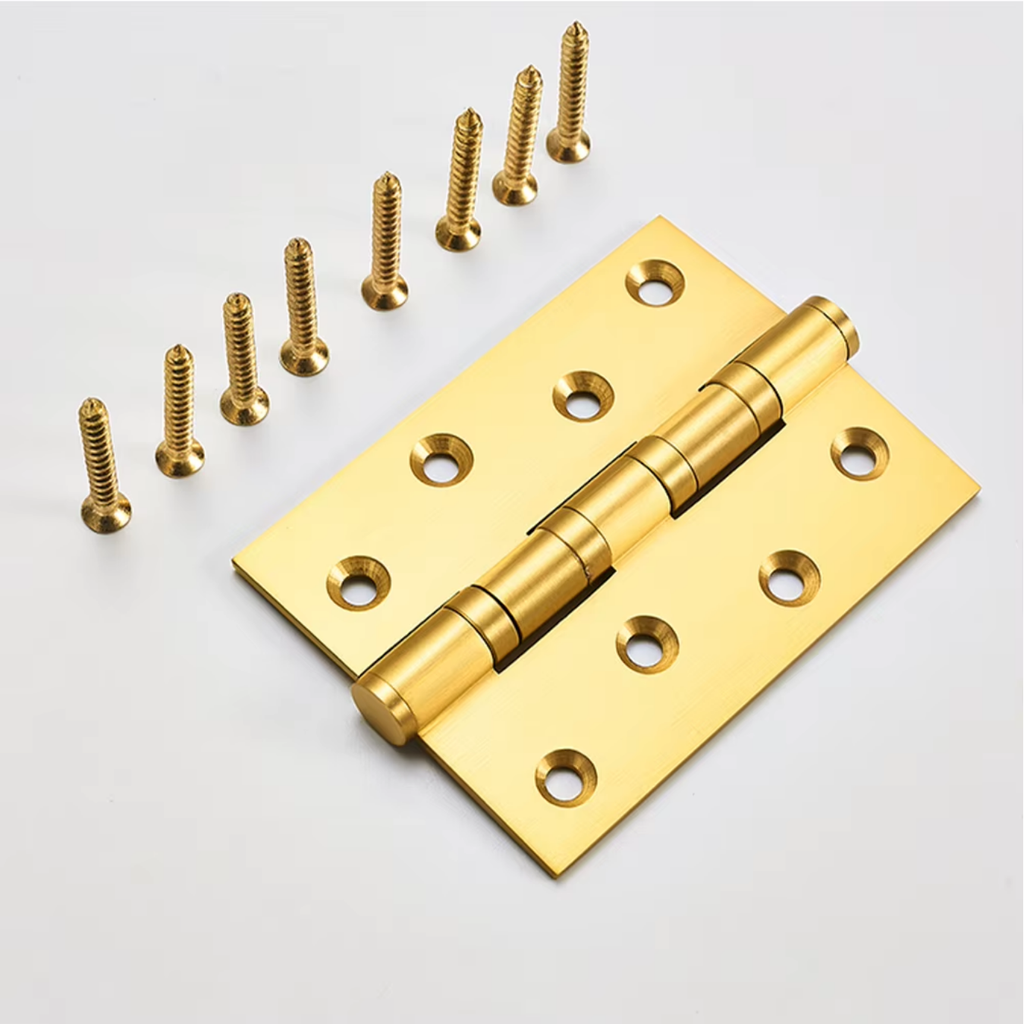

• Included: 1 hinge with matching screws
• Available sizes: 4 in and 5 in

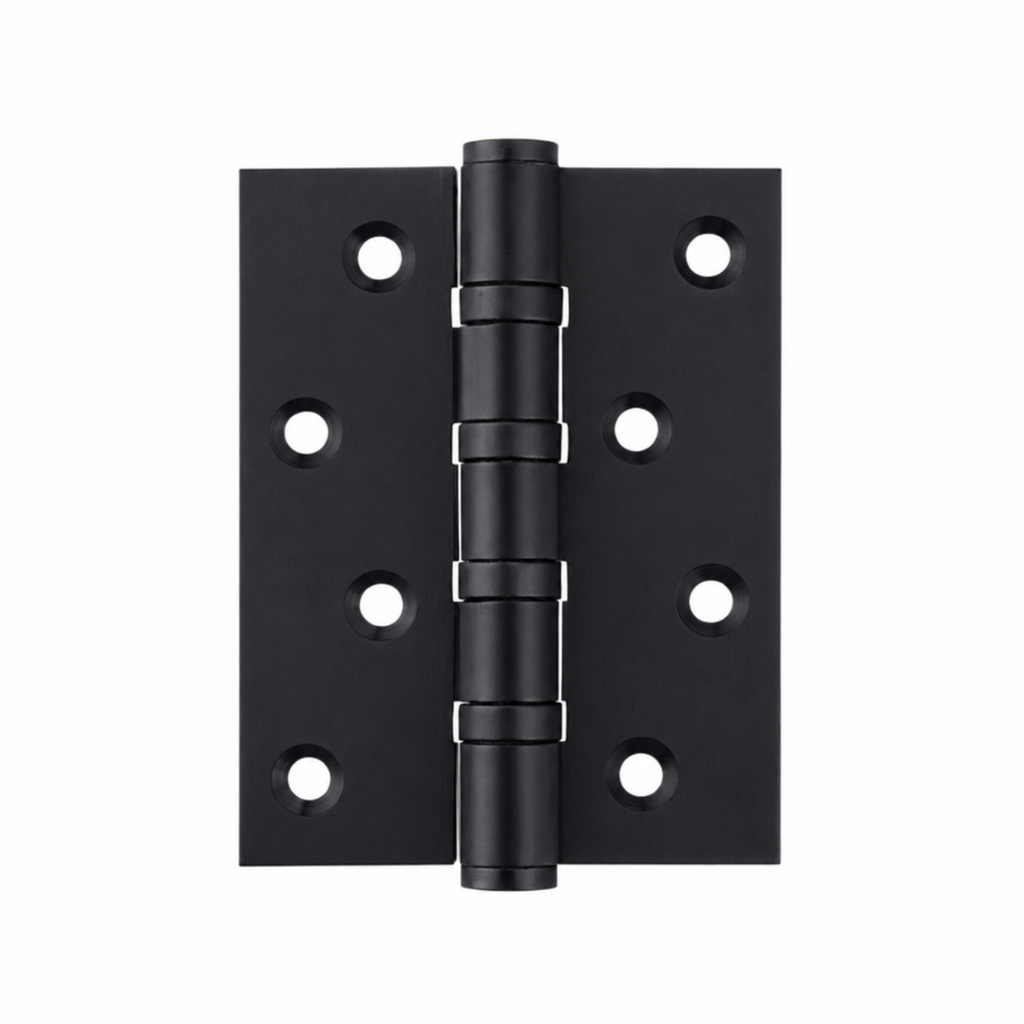

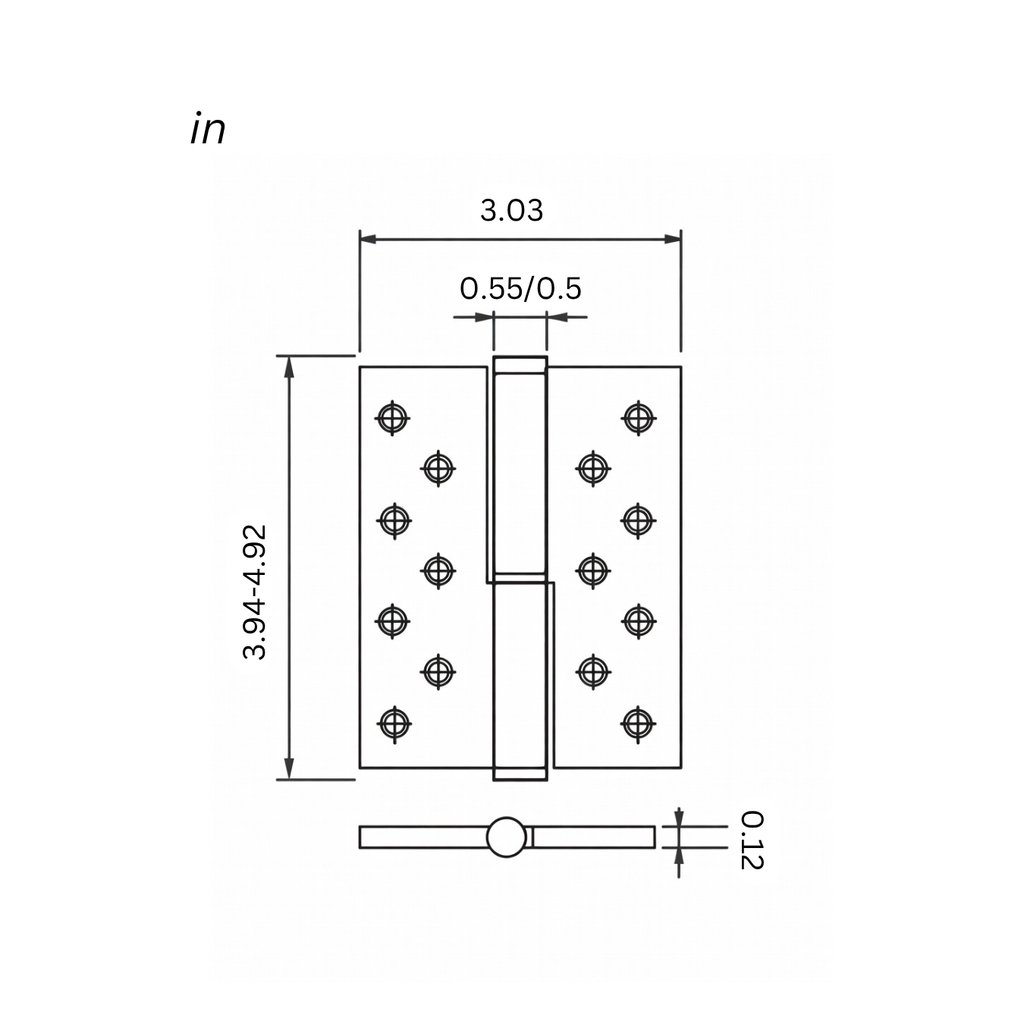

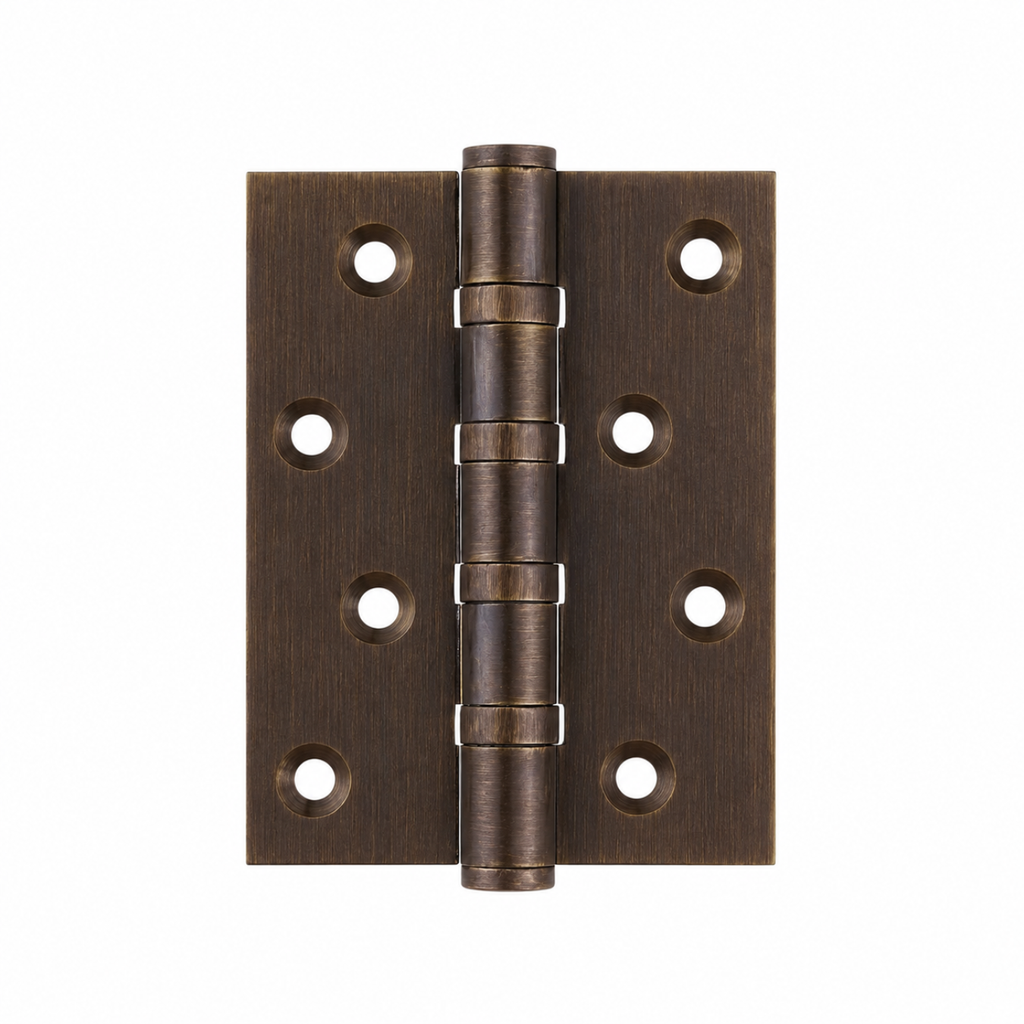

• 4 in hinge size: 3.94" H × 3.03" W when open (100 mm H × 76.5 mm W when open)

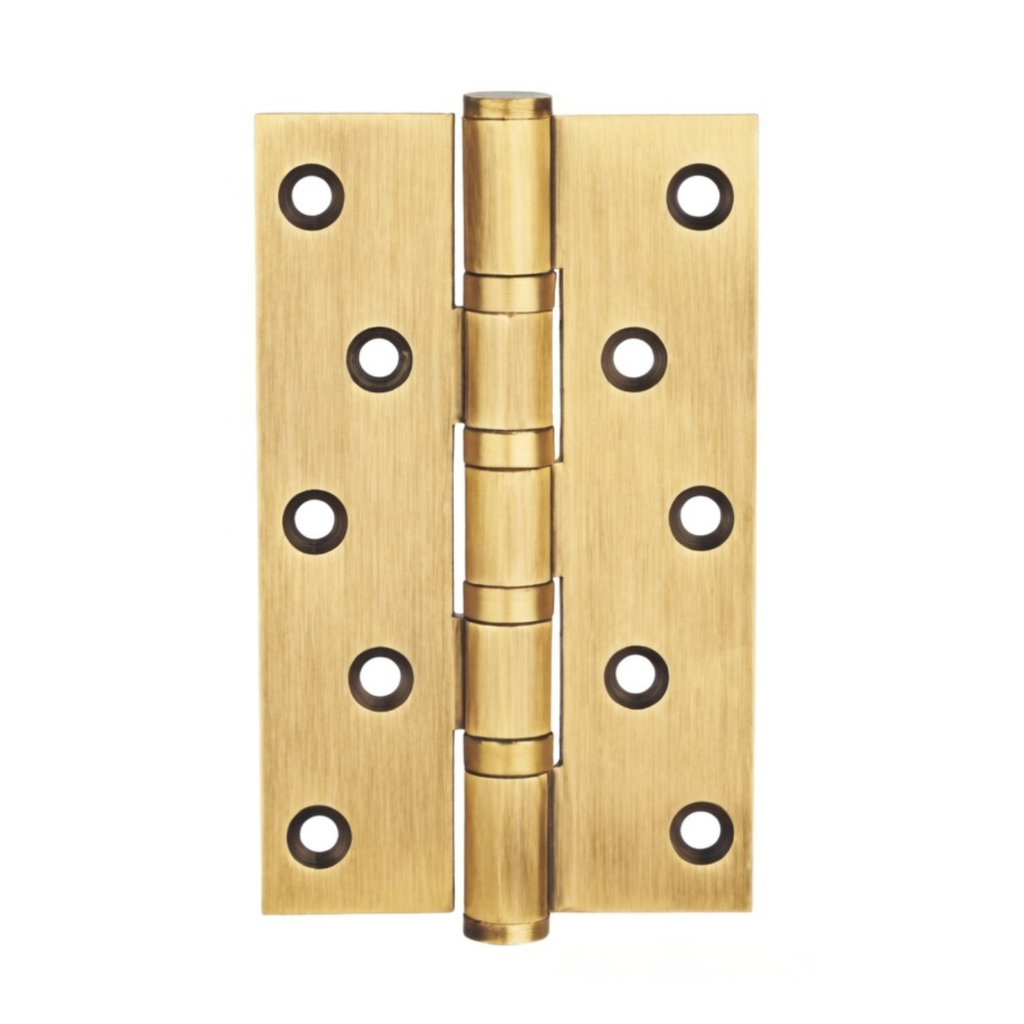

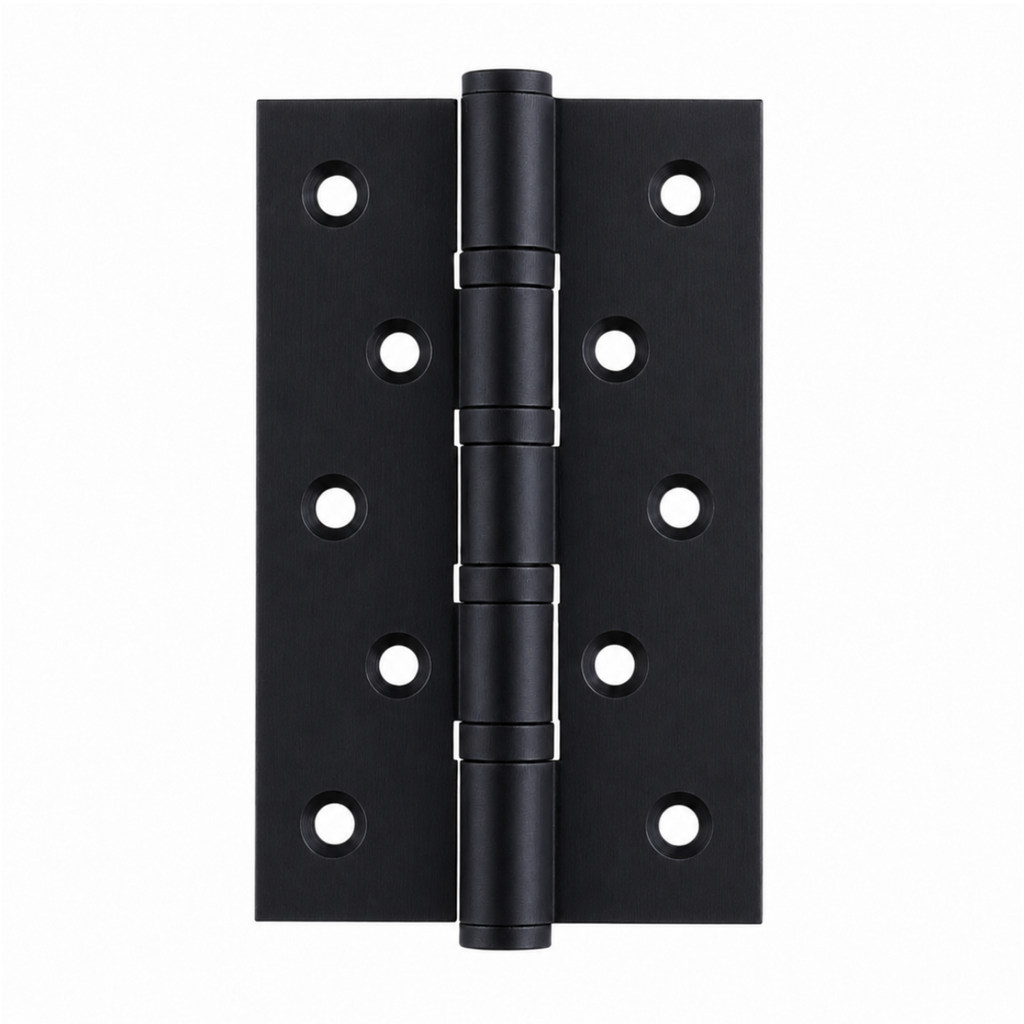

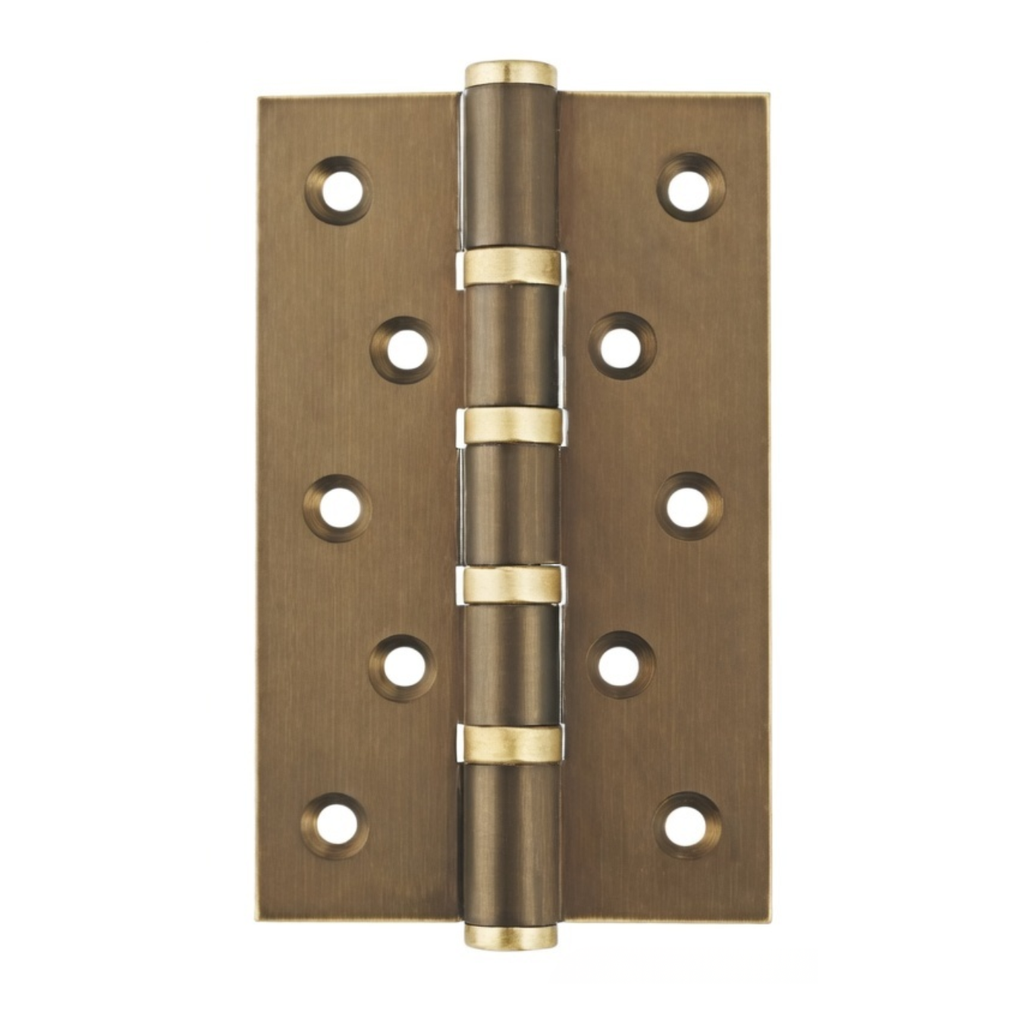

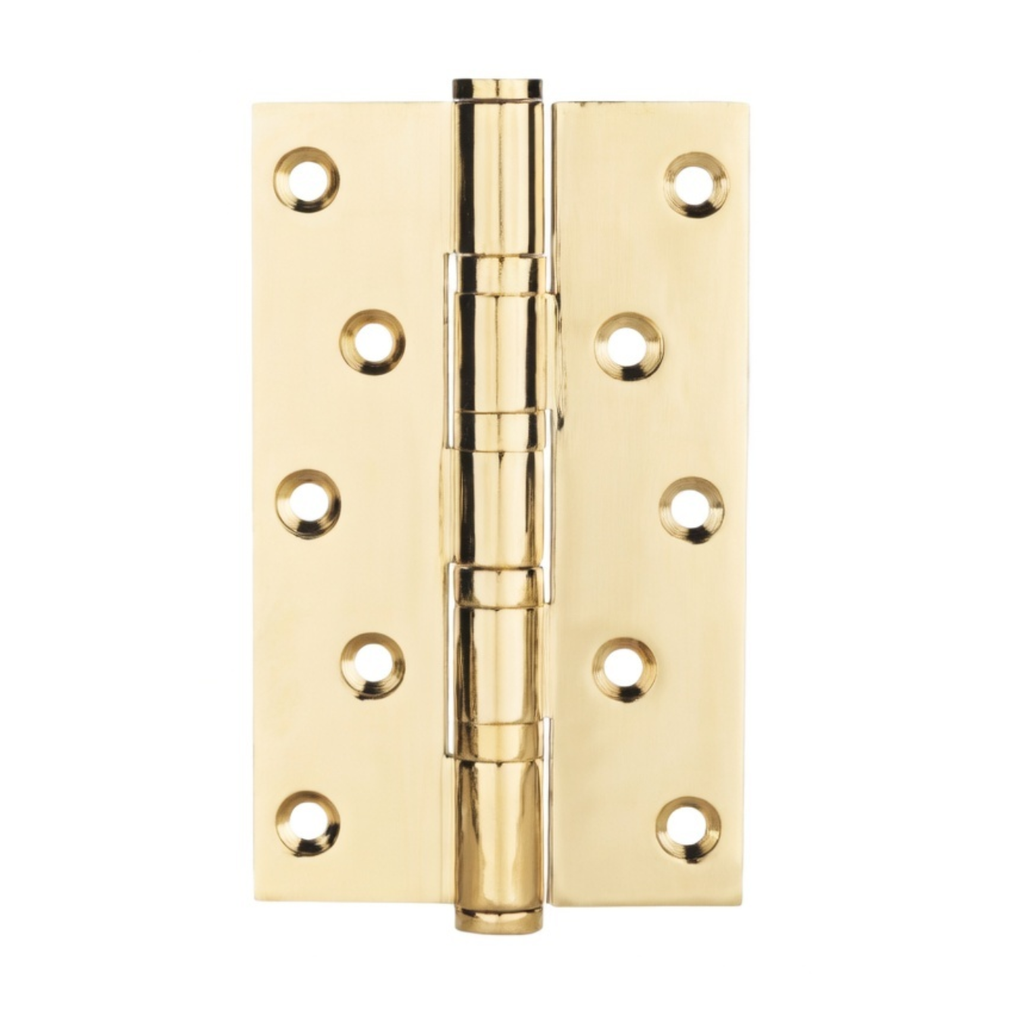

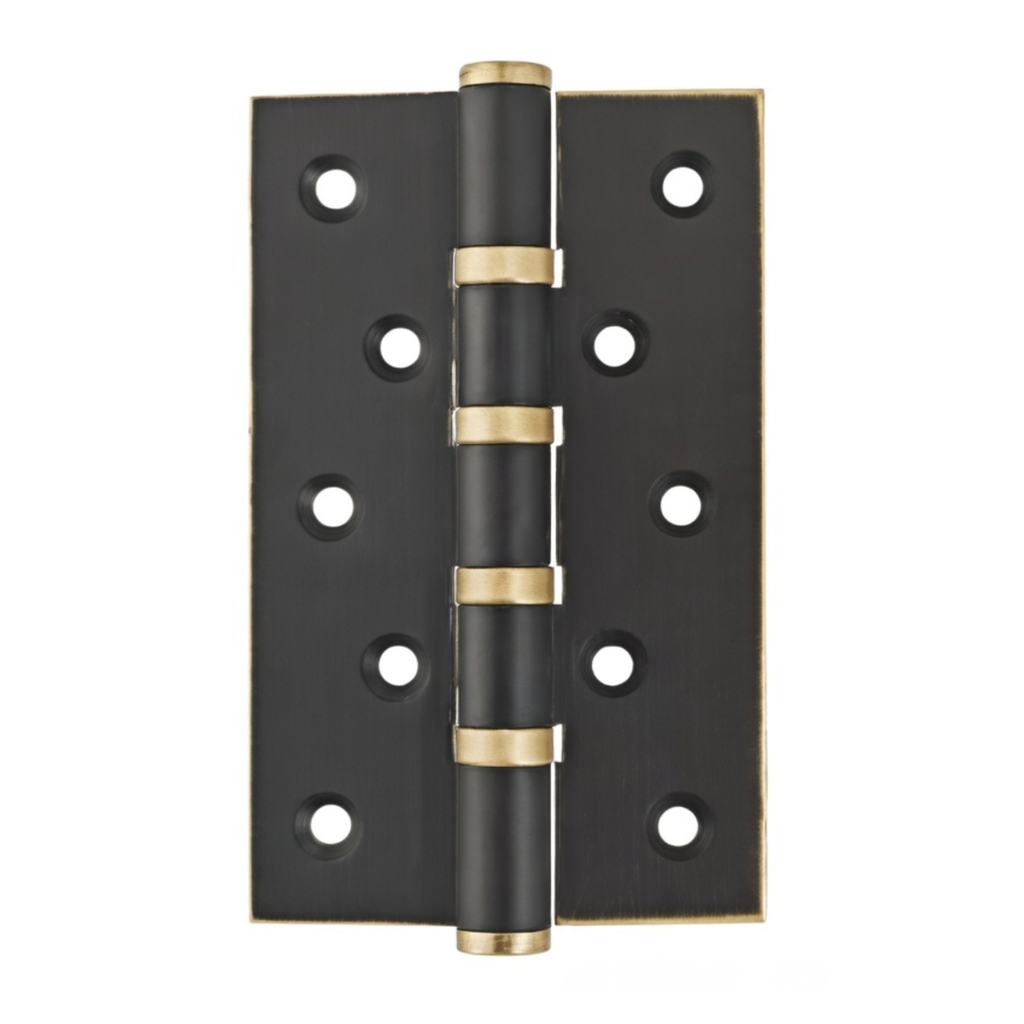

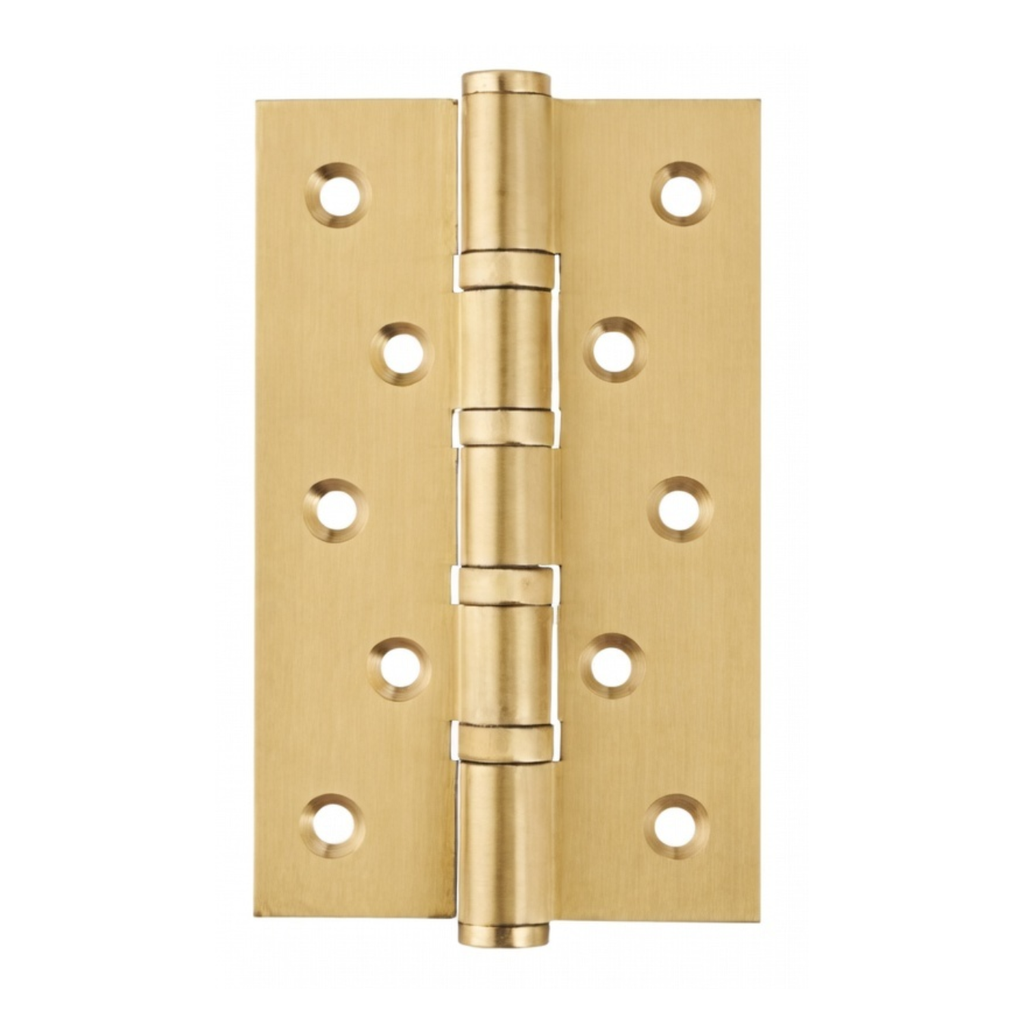

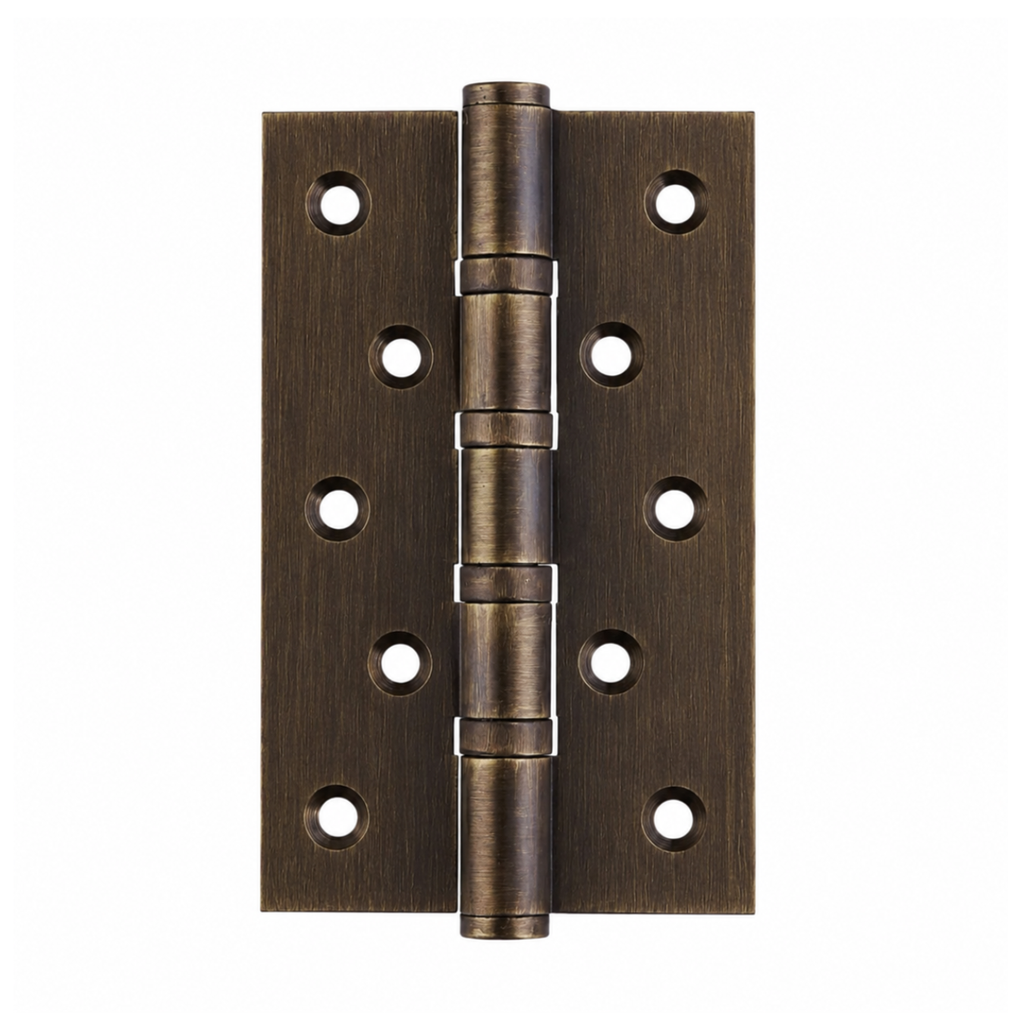

• 5 in hinge size: 4.92" H × 3.03" W when open (125 mm H × 76.5 mm W when open)
• Barrel diameter: 0.5"–0.55" (12.7–14 mm)
• Leaf thickness: 0.12" (3 mm)
• Screw count: 8 screws for 4" hinges / 10 screws for 5" hinges
• Use: Interior doors
• Installation: Mortise installation
• Weight: 0.53 lb per 4 in hinge / 0.66 lb per 5 in hinge
• Warranty: 1 Year
